Lenco Marine RT12X12I Standard Performance Trim Tab Kit with LED Indicator Switch - 12V

Standard Performance Series Tabs


Standard actuator with 5/16 stainless steel through bolts. 1 turned up edges with 2 taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished Blades

We make the best boats better!

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

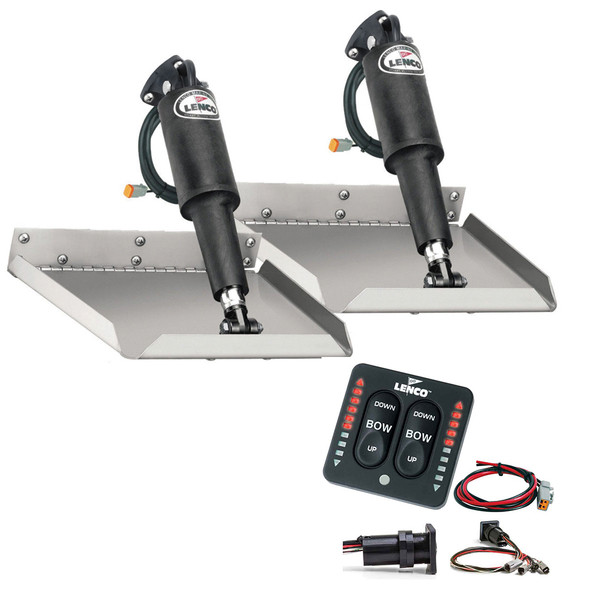

Each kit contains:

• Tactile LED Indicator Switch

• 2 actuators with 6' Lead & Deutsch Plugs

• 2 12 Gauge SS Electro Polished trim tab planes

• 2 20' Actuator Extension Wiring Harness

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All Necessary stainless steel mounting Hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat's maneuverability and performance with the Lenco Marine RT12X12I Standard Performance Trim Tab Kit, designed for demanding marine environments. Crafted from all 12-gauge 304 stainless steel, including electro-polished blades, this kit ensures durability and corrosion resistance in harsh saltwater conditions. The actuator features a 5/16 inch stainless steel through bolt, with a design that includes one turned-up edge and two tapered inside edges for precise control and stability at high speeds. The high-impact, ultraviolet-resistant nylon case with a 50% glass fiber fill guarantees longevity and reliable operation under rough sea conditions. The actuators are sealed for life, maintenance-free, and provide instant response, allowing for quick adjustments that improve boat performance and fuel efficiency. This robust system is compatible with 12 and 24-volt power supplies, making it versatile for various marine applications. The kit includes two actuators with 6-foot leads and Deutsch plugs, stainless steel electro-polished trim planes, and all necessary mounting hardware, ensuring straightforward installation and dependable performance. The tactile switch with a built-in indicator LED provides clear, real-time feedback on the trim tab positions. Its self-contained, sealed design includes a control box with fade and smudge-proof laser-engraved graphics, a plug-and-play wiring harness, and a 36-inch power pigtail, simplifying setup and operation. The switch features a retract function that automatically returns the trim tabs to a fully retracted position when power is off, enhancing safety and convenience. An ambient light sensor adjusts the LED intensity for visibility in bright sunlight, ensuring consistent readability. This kit's comprehensive features and durable construction make it ideal for aggressive boating and rough seas, providing precise control for optimal boat handling and performance. Whether you're navigating challenging waters or seeking to upgrade your existing system, the Lenco Marine RT12X12I trim tab kit offers reliability and ease of use for demanding boaters.

Features:

• All stainless steel construction with electro-polished blades for durability and corrosion resistance

• Actuator with 5/16 inch stainless steel through bolt, turned-up edge, and tapered inside edges for precise control

• Sealed, maintenance-free actuators with instant response and high-impact nylon case

• Compatible with 12 and 24-volt systems for versatile marine application

• Includes two actuators with 6-foot leads and Deutsch plugs for easy installation

• Electro-polished stainless steel trim planes for long-lasting good looks

• Tactile switch with LED indicator and self-contained control box for reliable operation

• Fade and smudge-proof laser-engraved graphics on switch

• Plug-and-play wiring harness with 36-inch power pigtail for simplified setup

• Automatic retract feature for safety when power is removed

• Ambient light sensor adjusts LED display for optimal visibility in sunlight

• Includes all necessary stainless steel mounting hardware for installation
