Lenco Marine RT16X12I Standard Performance 16 x 12 Inch Trim Tab Kit with LED Indicator Switch, 12V

Standard Performance Series Tabs


Standard actuator with 5/16 stainless steel through bolts. 1 turned up edges with 2 taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished Blades

We make the best boats better!

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

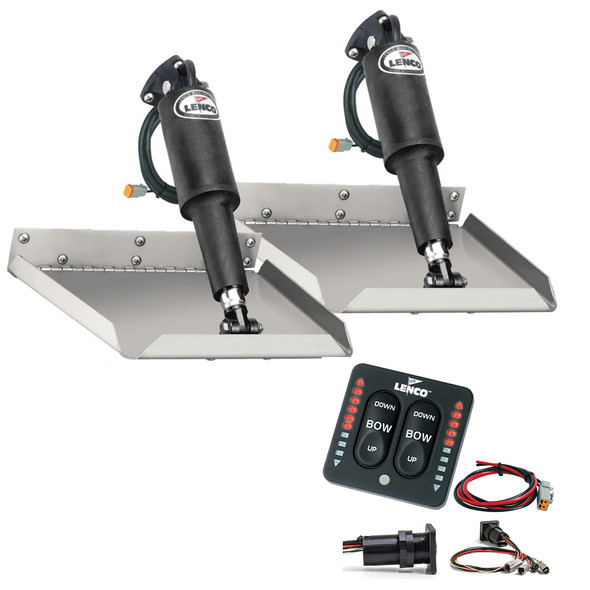

Each kit contains:

• Tactile LED Indicator Switch Kit

• 2 actuators with 6' Lead & Deutsch Plugs

• 2 12 Gauge SS Electro Polished trim tab planes

• 2 20' Actuator Extension Wiring Harness

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All Necessary stainless steel mounting Hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Lenco Marine RT16X12I Standard Performance Trim Tab Kit is designed for aggressive boating and rough sea conditions, providing reliable control and durability. Constructed entirely of 12-gauge 304 stainless steel, the trim tabs feature electro-polished blades that resist corrosion and maintain their attractive appearance over time. The actuator system includes a 5/16 stainless steel through bolt, a turned-up edge, and a taper on the inside for smooth operation and longevity. These actuators are fully sealed, maintenance-free, and made with high-impact, UV-resistant nylon cases filled with 50% glass fiber, ensuring they withstand harsh marine environments.

The kit includes a tactile LED indicator switch with a sealed, self-contained keypad and control box, offering precise control and visibility of trim tab positions. The switch features laser-engraved graphics that resist fading and smudging, along with a plug-and-play wiring harness and a 36-inch power pigtail for easy installation. The switch's design includes a retract feature that automatically returns the trim tabs to a fully retracted position when power is off, enhancing safety and convenience. Integrated high-intensity LED indicators display the exact position of each trim tab at all times, with ambient light sensors adjusting LED brightness for visibility in direct sunlight. Compatible with 12V and 24V systems, the control module also features a self-check function for troubleshooting.

Each kit contains two actuators with 6-foot leads and Deutsch plugs, two electro-polished stainless steel trim tab planes, extension wiring harnesses, upper and lower mounting brackets with gland seals, and all necessary stainless steel hardware for installation. This comprehensive setup simplifies installation and ensures optimal performance for high-speed, demanding boating applications. Designed to withstand the rigors of demanding marine environments, the Lenco Marine RT16X12I trim tab kit is an essential upgrade for boaters seeking enhanced control, stability, and safety on the water.

Features:

• Constructed entirely of 12-gauge 304 stainless steel with electro-polished blades for corrosion resistance and lasting appearance

• High-impact, UV-resistant nylon actuator cases filled with 50% glass fiber for durability in harsh environments

• Precision actuator speed with instant response for smooth and accurate trim adjustments

• Sealed, maintenance-free actuators designed for full submersion and reliable operation

• Self-contained, sealed tactile LED indicator switch with laser-engraved graphics for durability and visibility

• Plug & play wiring harness and 36-inch power pigtail for simple installation

• Built-in retract feature automatically returns trim tabs to a fully retracted position when power is removed

• High-intensity LED indicators showing trim tab positions with ambient light sensor for optimal visibility

• Compatible with 12V and 24V electrical systems for versatile application

• Includes all necessary mounting hardware, actuators, trim planes, wiring harnesses, and control components for complete installation
