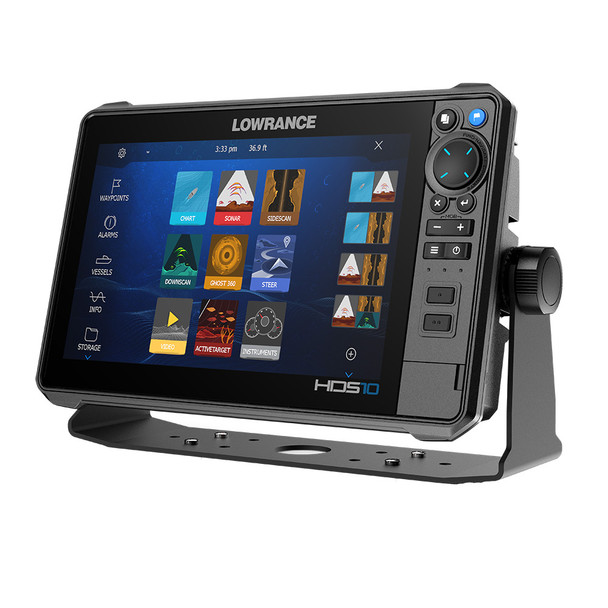

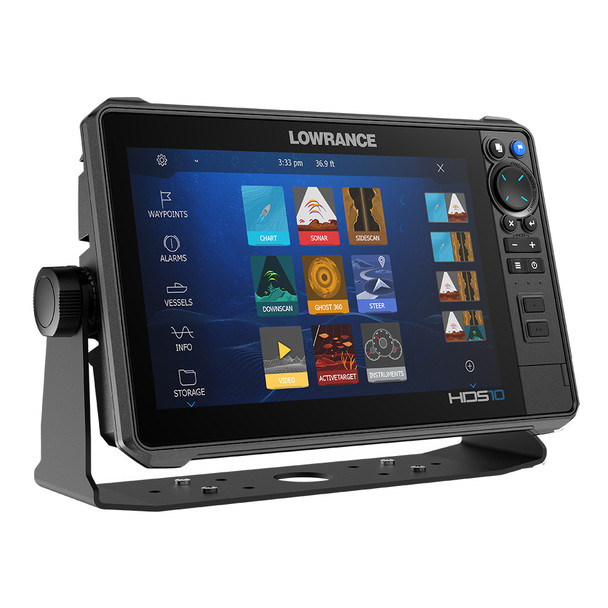

Lowrance HDS PRO 10 Fishfinder and Chartplotter with Preloaded C-MAP DISCOVER and Active Imaging HD Transducer

HDS PRO 10 - with Preloaded C-MAP DISCOVER OnBoard Active Imaging HD Transducer

See more and catch more with the HDS PRO 10 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to

In the box:

• HDS PRO fishfinder/chartplotter (10-inch display screen)


• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)


• Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)

Features (Lowrance Active Imaging HD 3-in-1 Transducer):

• High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure


• Lowrance CHIRP with superb clarity and target separation


• FishReveal DownScan view makes fish identification easy


• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies


• Smart transducer design boosts signal clarity


• Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes


• SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses


• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)


• High-resolution ActiveTarget 2 Live Sonar ready


• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)


• Real-time mapping is available with C-MAP Genesis Live.


• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views


• Large programmable keys


• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot


• NMEA 2000, wireless and bluetooth, connectivity plus smartphone notifications

Display:

• Backlight Color: Pure white LED


• Display Resolution: 1280 x 720


• Viewing Angles: 80 top/bottom, 80 left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic


• Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network


• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module


• NMEA 2000 Connectivity: 1x Micro-C


• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 2.9A @ 13.8VDC with Full Backlight, Sonar on


• Power Consumption Minimum: 2.0A @ 13VDC with Full Backlight, Sonar on


• Power Consumption Typical: 2.0A @ 13VDC with Full Backlight, Sonar on


• Recommended Fuse Rating: 3A


• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5F to 131F (-15C to 55C )


• Storage Temperature Range: 4F to 140F (-20C to 60C )

GPS:

• GPS Receiver Channels: 16


• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)


• Internal Storage: 8.0 GB Internal


• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

The Lowrance HDS PRO 10 offers advanced fishfinding and navigation features designed for serious anglers. Its 10-inch high-resolution touchscreen provides clear visibility at extreme angles and through polarized lenses, making it easier to monitor your boat's surroundings. Preloaded with C-MAP DISCOVER OnBoard charts, it offers detailed mapping of over 19,000 US lakes and 9,400 Canadian lakes with 1-foot contours, helping you quickly identify prime fishing spots and navigate with confidence. The system supports real-time mapping with C-MAP Genesis Live, allowing anglers to customize their charts for specific fishing environments.
The HDS PRO 10's standout feature is its support for ActiveTarget 2 Live Sonar, which enables you to see fish reacting to your lure in real-time. Coupled with the Active Imaging HD Transducer, it delivers ultra-high-definition SideScan and DownScan imaging, providing the clearest images of fish and underwater structures. The transducer supports high-frequency CHIRP imaging up to 1.2 MHz, as well as versatile frequencies including 83/200 kHz, 455/800 kHz, and 455/1.2 MHz, ensuring optimal imaging performance in various conditions. FishReveal technology simplifies fish identification by overlaying sonar data, making it easier to distinguish fish from structure.
Connectivity options include Bluetooth 4.0, WiFi, Ethernet ports supporting up to six MFDs, and NMEA 2000, allowing seamless integration with other marine electronics and smartphone notifications. The device features large programmable keys and touch controls for managing Autopilot, Power-Pole anchors, Ghost Trolling Motor, and Lowrance Outboard Pilot. Its internal 8 GB storage supports waypoints, routes, and tracks, with capacity for up to 3,000 waypoints and 100 routes, making navigation efficient and organized.
Designed for durability, the HDS PRO 10 operates within a temperature range suitable for various climates, and its electrical system consumes minimal power while providing robust performance. Whether you're fishing in freshwater or saltwater, this system offers comprehensive features to improve your fishing experience, from precise mapping and imaging to advanced sonar capabilities and extensive network connectivity.

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with detailed contours for over 19,000 US lakes and 9,400 Canadian lakes

• High-resolution 10-inch SolarMAX HD touchscreen with extreme angle visibility and polarized lens support

• Active Imaging HD Transducer delivers ultra-high-definition SideScan and DownScan imaging with target separation up to 1.2 MHz

• Supports high-quality CHIRP sonar imaging across multiple frequencies including 83/200 kHz, 455/800 kHz, and 455/1.2 MHz

• FishReveal technology enhances fish detection by overlaying sonar data for easy identification

• Real-time mapping with C-MAP Genesis Live for custom chart creation

• Supports ActiveTarget 2 Live Sonar for real-time fish tracking

• Connectivity includes Bluetooth 4.0, WiFi, Ethernet (up to 6 MFDs), and NMEA 2000 compatibility

• Large programmable keys and touchscreen controls for managing boat systems such as autopilot and trolling motors

• Internal 8 GB storage supports extensive waypoint, route, and trail management
