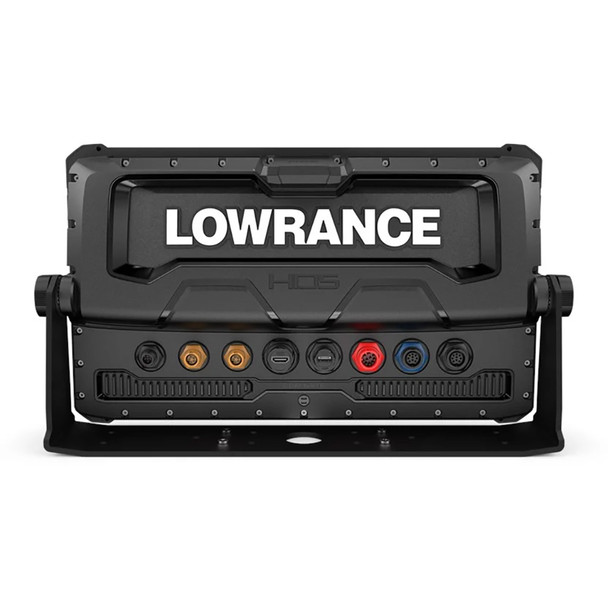

Lowrance HDS PRO 16 Fishfinder and Chartplotter with Preloaded C-MAP DISCOVER and Active Imaging HD Transducer

HDS PRO 16 - with Preloaded C-MAP DISCOVER OnBoard Active Imaging HD Transducer

See more and catch more with the HDS PRO 16 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD Transducer. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

• HDS PRO fishfinder/chartplotter (16-inch display screen)


• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)


• Lowrance Active Imaging HD 3-in-1 Transducer (part number: 000-16062-001)

Features (Lowrance Active Imaging HD 3-in-1 Transducer):

• High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure


• Lowrance CHIRP with superb clarity and target separation


• FishReveal DownScan view makes fish identification easy


• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies


• Smart transducer design boosts signal clarity


• Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes


• SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses


• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)


• High-resolution ActiveTarget 2 Live Sonar ready


• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)


• Real-time mapping is available with C-MAP Genesis Live.


• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views


• Large programmable keys


• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot


• NMEA 2000, wireless and bluetooth, connectivity plus smartphone notifications

Display:

• Backlight Color: Pure white LED


• Display Resolution: 1920 x 1080 Full HD


• Viewing Angles: 80 top/bottom, 80 left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic


• Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network


• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module


• NMEA 2000 Connectivity: 1x Micro-C


• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 4.1A @ 13VDC with Full Backlight, Sonar on


• Power Consumption Minimum: 3.00 @ 13VDC with Full Backlight, Sonar on


• Power Consumption Typical: 3.00 @ 13VDC with Full Backlight, Sonar on


• Recommended Fuse Rating: 5A


• Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5F to 131F (-15C to 55C )


• Storage Temperature Range: 4F to 140F (-20C to 60C )

GPS:

• GPS Receiver Channels: 16


• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)


• Internal Storage: 8.0 GB Internal


• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

The Lowrance HDS PRO 16 offers a comprehensive marine navigation and fishfinding solution designed for serious anglers and boaters. Featuring a 16-inch high-definition touchscreen display with a resolution of 1920 x 1080 Full HD, it provides clear visuals at extreme angles and through polarized lenses. The system comes equipped with preloaded C-MAP DISCOVER OnBoard charts, covering over 19,000 US lakes and 9,400 Canadian lakes with 1-foot contours, enabling precise navigation and quick location of prime fishing spots. The integrated GPS receiver with 16 channels and a 10 Hz update rate ensures accurate positioning and tracking, vital for both navigation and fishing efficiency. The system supports multiple connectivity options, including Bluetooth 4.0, WiFi, Ethernet, and NMEA 2000, facilitating seamless integration with other marine electronics and accessories, along with smartphone notifications for real-time updates. The built-in storage of 8 GB allows for extensive waypoint, route, and track management, with capacity for up to 3,000 waypoints and 100 routes or trails, accommodating extensive fishing trips or navigation plans. The system’s user-friendly features include large programmable keys, touchscreen controls for Power-Pole anchors, Ghost trolling motor, autopilot, and outboard pilot, providing streamlined operation. For enhanced fish detection, the system supports ActiveTarget 2 Live Sonar and Active Imaging HD Transducer, which deliver high-resolution SideScan, DownScan, and CHIRP imaging, revealing fish and structures with exceptional clarity. The Lowrance Active Imaging HD 3-in-1 Transducer, included in the package, offers frequencies up to 1.2 MHz for detailed imaging and compatibility with various Lowrance models, ensuring versatile performance. This system is ideal for anglers seeking advanced imaging, detailed cartography, and integrated boat control, making it a versatile and powerful addition to any fishing or boating setup.

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with detailed contours for over 19,000 US lakes and 9,400 Canadian lakes

• 16-inch Full HD touchscreen with high contrast and viewing angles for optimal visibility

• Active Imaging HD Transducer with SideScan, DownScan, and CHIRP imaging delivering clear images of fish and structure

• Supports ActiveTarget 2 Live Sonar for real-time fish tracking and lure reaction

• Built-in GPS with 16 channels and 10 Hz update rate for precise navigation

• Multiple connectivity options including Bluetooth, WiFi, Ethernet, and NMEA 2000

• Large internal storage for waypoints, routes, and trails with extensive capacity

• Expandable with Power-Pole, Ghost Trolling Motor, and autopilot controls via touchscreen

• Compatibility with Lowrance HDS PRO, HDS LIVE, HDS Carbon, and Elite FS models

• Supports real-time mapping with C-MAP Genesis Live and overlays for ActiveTarget Scout and Ghost Trolling Motor
