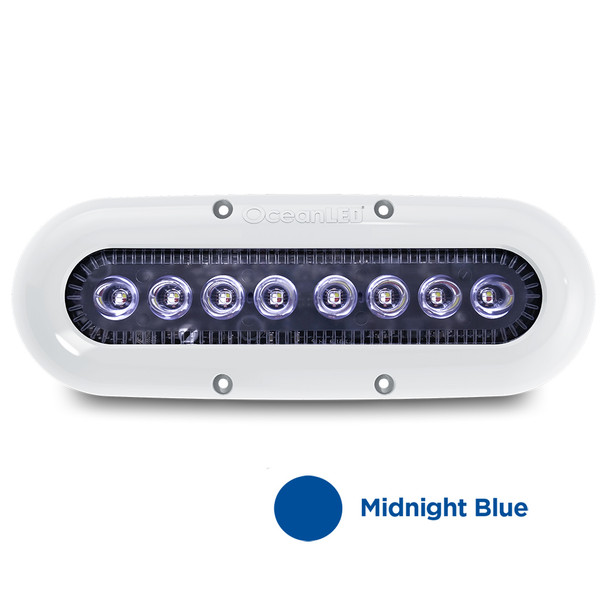

OceanLED X-Series X8 Midnight Blue LED Underwater Light

X-Series X8 - Midnight Blue LEDs

The X8 packs a mighty 2,300 Fixture Lumens into its low profile design and utilizes focused optics to produce a 60x circular beam from each LED providing great water penetration, illuminating a large area.

Choose either a single color version from either Midnight Blue or Ultra White or pick our Colours option where you can select any color you want from the RGBW spectrum. You can toggle between the colors or with our DMX controller and smartphone app, your choice is virtually limitless.

Looking to catch more fish Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

The low profile, simple design is easy to install even for the weekend DIYer. A small 12.5mm hole is all that's needed to run the cable through the hull. Fix 4 screws and that's the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth thanks to the special Tritonium coating.

Features:

2,900 Lumens / 2,300 Fixture Lumens:

Outstanding performance from this small, bright light makes it the obvious choice for those who want tostand out from the crowd.

60 Beam Angle

A wide-angled, focused beam lights up a large area of the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Easy to Clean

Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours ofscrubbing each time you use it.

Fish-Strobe Mode

Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.

Mounting Recommendations

• Boat size: up to 50' (15M)
• Transom / Hull spacing: 2-4' (0.5-1.2M)
• Transom quantity: 2-6
• Hull quantity: 4-8" (10-20cm)
• Maximum hull thickness: N/A
• Installation depth (to top of fixture): 300mm below water line
• In water fitting: No

Technical

• Light output equivalent to: 50W Xenon
• Fixture Lumens* (total light output from a finished fixture): 2,300
• Lumens: 2,900
• Beam angle: 60 circular
• Typical LED life expectancy: 40,000 hours
• Minimum-Maximum operating voltage DC: 9 - 32 V DC
• Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 1.65A @ 12V DC - 0.75A @ 24V DC
• Approx. light penetration (avg. water quality): 26' (8M)
• Approx. Light penetration (perfect water quality): 72' (21+M)
• Driver type: Internal
• Driver size (L x W x H): N/A
• Color options: Ultra White - Midnight Blue or Colors
• Correlated Color Temp: 6500 K - 450 nm
• IP Rating: IP68
• Fish strobe: YES
• Anti fouling properties: Tritonium coated lens
• LED Manufacturer: CREE

Physical

• Size: 8.62" (219mm) x 3.07" (78mm)
• Depth: 0.86" (22mm)
• Total weight including electrical driver: 0.34kg
• Extension cable length (standard-hard wired to light): 9-7/64' (3M)
• Hole cut-out for cable entry: 1/2" (12.5mm)
• Material: Chemically Resistant Optical Polymer
• Lens material: Pilkington Optiwhite
• Body construction: Machined (First Release)
• Bezel material: Plastic
• Bezel thickness: N/A
• Bezel options: Stainless Steel Bezel Optional
• Bezel color: White
• Drag factor: N/A
• Optics: Collimator
• No of LEDs: 8
• Certification: EMC Approved
• CE Approved: Yes

Specifications:

• Warranty: 2 years

The OceanLED X-Series X8 in Midnight Blue is a compact, powerful underwater LED light designed for marine enthusiasts seeking high performance with minimal installation effort. Delivering an impressive 2,300 fixture lumens and a 60-degree circular beam angle, this light ensures broad water coverage with excellent penetration, making it ideal for illuminating large areas beneath your vessel. Crafted from chemically resistant optical polymer and featuring a Tritonium-coated lens, the X8 is built to withstand harsh marine environments and requires virtually no maintenance—simply wipe clean to remove any marine growth.

This model offers versatile lighting options, including a single Midnight Blue hue, Ultra White, or customizable RGBW colors. With the included DMX controller and smartphone app compatibility, users can switch colors or activate modes like Fish-Strobe, which emits randomized strobe patterns proven to attract bait fish and increase catch rates. The low-profile design allows easy installation through a small 12.5mm (1/2 inch) hole with just four screws, making it accessible for DIY installations without the need for bonding or complex setup. Powering the light is straightforward—simply connect to a 12V or 24V DC power source, and it’s ready to illuminate.

The X8’s internal driver, measuring approximately 8.62 inches long by 3.07 inches wide and 0.86 inches deep, is integrated for a streamlined profile. It features an internal driver with a typical lifespan of 40,000 hours, ensuring long-term reliability. The light's IP68 rating signifies excellent water and dust resistance, suitable for in-water or hull mounting, with an optimal installation depth of 12 inches below the waterline. Its efficient design emits light comparable to a 50W Xenon bulb, penetrating up to 26 feet in average water clarity and over 70 feet in ideal conditions. Additional physical features include a white bezel, optional stainless steel bezel, and a Pilkington Optiwhite lens for clarity.

This underwater LED is EMC and CE approved, backed by a 2-year warranty, and manufactured by OceanLED, renowned for high-quality marine lighting solutions. Whether used for fishing, night cruising, or enhancing vessel aesthetics, the X-Series X8 Midnight Blue LED light offers reliable, easy-to-install performance with customizable color options and advanced features to meet diverse marine lighting needs.

Features:

• 2,300 fixture lumens with a 60-degree circular beam angle for broad water coverage

• Versatile color options including Midnight Blue, Ultra White, or customizable RGBW spectrum

• Fish-Strobe mode with randomized strobing to attract bait fish and increase catch rates

• Compact, low-profile design requiring only a small 12.5mm hole for installation

• Durable Tritonium-coated lens for easy cleaning and marine growth resistance

• Built-in driver with an expected lifespan of 40,000 hours

• Waterproof IP68 rating suitable for in-water or hull mounting

• Easy installation with minimal hardware, no bonding needed

• Power options compatible with 12V and 24V DC systems

• Made from chemically resistant optical polymer with optional stainless steel bezel
