OceanLED X-Series X8 White LED Underwater Light - 2,300 Lumens, Fish-Strobe Mode

X-Series X8 - White LEDs

The X8 packs a mighty 2,300 Fixture Lumens into its low profile design and utilizes focused optics to produce a 60x circular beam from each LED providing great water penetration, illuminating a large area.

Choose either a single color version from either Midnight Blue or Ultra White or pick our Colours option where you can select any color you want from the RGBW spectrum. You can toggle between the colors or with our DMX controller and smartphone app, your choice is virtually limitless.

Looking to catch more fish Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

The low profile, simple design is easy to install even for the weekend DIYer. A small 12.5mm hole is all that's needed to run the cable through the hull. Fix 4 screws and that's the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth thanks to the special Tritonium coating.

Features:

2,900 Lumens / 2,300 Fixture Lumens:

Outstanding performance from this small, bright light makes it the obvious choice for those who want tostand out from the crowd.

60 Beam Angle

A wide-angled, focused beam lights up a large area of the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Easy to Clean

Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours ofscrubbing each time you use it.

Fish-Strobe Mode

Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.

Mounting Recommendations

• Boat size: up to 50' (15M)
• Transom / Hull spacing: 2-4' (0.5-1.2M)
• Transom quantity: 2-6
• Hull quantity: 4-8" (10-20cm)
• Maximum hull thickness: N/A
• Installation depth (to top of fixture): 300mm below water line
• In water fitting: No

Technical

• Light output equivalent to: 50W Xenon
• Fixture Lumens* (total light output from a finished fixture): 2,300
• Lumens: 2,900
• Beam angle: 60 circular
• Typical LED life expectancy: 40,000 hours
• Minimum-Maximum operating voltage DC: 9 - 32 V DC
• Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 1.65A @ 12V DC - 0.75A @ 24V DC
• Approx. light penetration (avg. water quality): 26' (8M)
• Approx. Light penetration (perfect water quality): 72' (21+M)
• Driver type: Internal
• Driver size (L x W x H): N/A
• Color options: Ultra White - Midnight Blue or Colors
• Correlated Color Temp: 6500 K - 450 nm
• IP Rating: IP68
• Fish strobe: YES
• Anti fouling properties: Tritonium coated lens
• LED Manufacturer: CREE

Physical

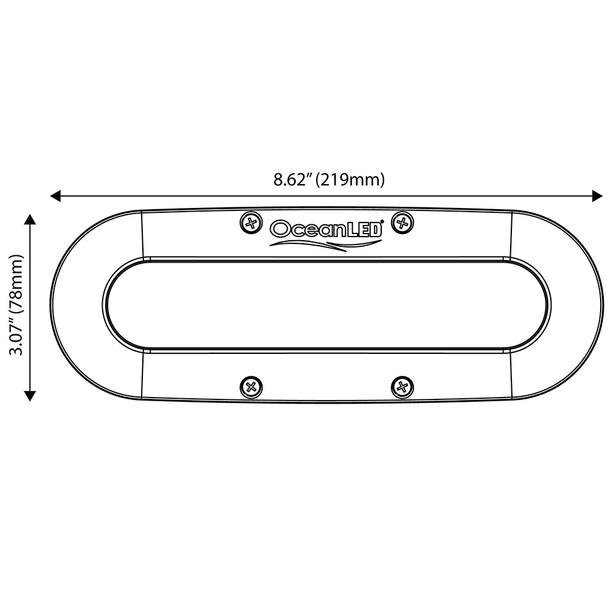

• Size: 8.62" (219mm) x 3.07" (78mm)
• Depth: 0.86" (22mm)
• Total weight including electrical driver: 0.34kg
• Extension cable length (standard-hard wired to light): 9-7/64' (3M)
• Hole cut-out for cable entry: 1/2" (12.5mm)
• Material: Chemically Resistant Optical Polymer
• Lens material: Pilkington Optiwhite
• Body construction: Machined (First Release)
• Bezel material: Plastic
• Bezel thickness: N/A
• Bezel options: Stainless Steel Bezel Optional
• Bezel color: White
• Drag factor: N/A
• Optics: Collimator
• No of LEDs: 8
• Certification: EMC Approved
• CE Approved: Yes

Specifications:

• Warranty: 2 years

The OceanLED X-Series X8 White LEDs deliver exceptional underwater illumination with a compact and low-profile design, making it ideal for boat owners seeking reliable, high-performance lighting. With a total light output of 2,900 lumens and 2,300 fixture lumens, this powerful light provides outstanding brightness to illuminate large water areas effectively. Its focused 60-degree beam angle ensures a wide, circular light distribution, enabling excellent water penetration and visibility even in challenging conditions. Constructed from chemically resistant optical polymer with a Pilkington Optiwhite lens, the X8 is built to withstand harsh marine environments while maintaining clarity and performance.

Installation is straightforward, requiring only a 12.5mm hole to feed the cable through the hull and three screws to secure the fixture. Its internal driver and simple design eliminate the need for bonding, making it an accessible choice for DIY enthusiasts. The Tritonium-coated lens offers anti-fouling properties, allowing for easy maintenance—simply wipe the lens with a cloth to remove marine growth, saving hours of cleaning. The fixture's water penetration capability extends up to approximately 26 feet in average water quality and over 70 feet in ideal conditions, making it suitable for a range of marine applications.

The OceanLED X8 features multiple color options, including Ultra White, Midnight Blue, and RGBW spectrum choices, which can be toggled via a smartphone app or DMX controller for virtually limitless customization. The Fish-Strobe mode, with its randomized bright strobing pattern, is proven to attract bait fish and increase catch rates. Designed for boats up to 50 feet with transom or hull spacing from 2 to 4 feet, it is suitable for a variety of marine vessels. Its durable construction, IP68 rating, and 40,000-hour LED lifespan ensure long-lasting performance in demanding marine environments. Whether for recreational fishing or general illumination, the OceanLED X-Series X8 provides a reliable, high-quality lighting solution that enhances your underwater experience.

Features:

• 2,900 Lumens / 2,300 Fixture Lumens: Outstanding brightness with efficient performance for large water areas

• 60 Beam Angle: Wide-angled, focused light to cover extensive underwater zones

• Compact and simple design: Made from resistant optical polymer with internal driver; easy installation with minimal hull modifications

• Easy to Clean: Tritonium-coated lens prevents marine growth, simplifying maintenance

• Fish-Strobe Mode: Randomized strobing pattern proven to attract bait fish and increase catch rates

• Multiple Color Options: Ultra White, Midnight Blue, or RGBW spectrum with toggle and remote control capability

• Durable Construction: IP68 rated for water resistance and built to withstand harsh marine environments

• Long LED Lifespan: Approximate 40,000 hours of reliable operation

• Easy Installation: Requires only a 12.5mm hole and three screws; no bonding needed

• Versatile Mounting: Suitable for boats up to 50 feet with recommended transom and hull spacing
