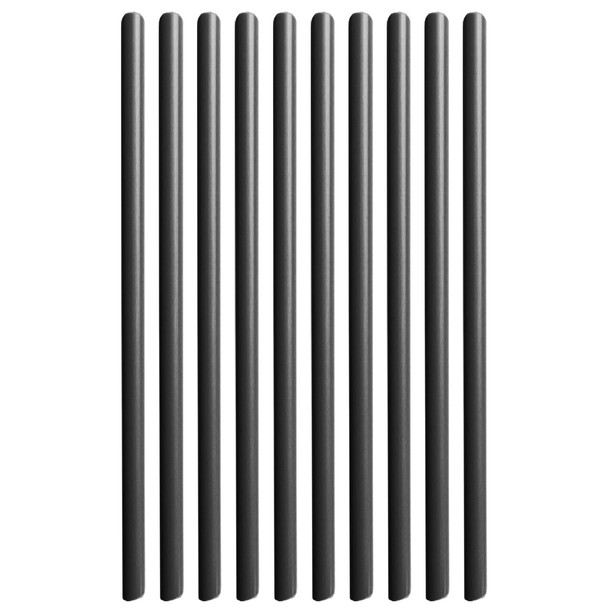

Pacer Battery Cable Heat Shrink Tubing 1/8 inch x 12 inches Black (10 Pieces)

Battery Cable Heat Shrink Tubing - 1/8 x 12 - Black (10-Pieces)

BHW is coated internally with a dual-purpose thermoplastic liner which flows and encapsulates when heated. When cooled, the tubing offers the mechanical strength of a superior adhesive and the corrosion protection of a high-quality mastic. Insulation varies with different types of wires, different diameters or tubing may be required. When choosing a size, consider any components or connectors that may need to be covered.

Features:

• Highly abrasion and impact-resistant


• Easy installation, shrinks when heated over 120 C


• The thermoplastic liner will adhere to PVC, neoprene and polyolefin, EPR, steel, and aluminum


• A sturdy, heavy wall tubing with excellent insulating, abrasion-resisting, and strain-relieving properties. The thermoplastic adhesive provides superior environmental protection.


• Any connection in harsh conditions


• Adhesive lining provides a barrier against contaminants


• Excellent resistance to acids and alkalis


• Good resistance to fuel, oil, and solvents

Applications:

• Splice sealing


• Primary insulation


• Cable/jacket repair


• Direct burial/submersible


• Strain relief

Compliances:

• MIL-I-23053/15 Class 2

The Pacer BEHS1/8-12BK-10 heat shrink tubing is designed for reliable insulation and protection of battery cables and electrical connections. Internally coated with a dual-purpose thermoplastic liner, this tubing flows and encapsulates when heated, providing a secure bond and superior environmental resistance. Once cooled, the adhesive lining offers excellent mechanical strength and corrosion protection, making it suitable for demanding electrical applications.
Constructed from heavy wall, impact-resistant material, this tubing is easy to install; it shrinks when heated over 120°C, ensuring a snug fit around wires, connectors, and components. The thermoplastic liner adheres well to common materials such as PVC, neoprene, polyolefin, EPR, steel, and aluminum, providing a durable, strain-relieving barrier against contaminants, acids, alkalis, fuel, oil, and solvents. This versatility makes it ideal for splice sealing, primary insulation, cable repair, and applications requiring direct burial or submersion.
Designed to withstand harsh environments, the Pacer heat shrink tubing meets MIL-I-23053/15 Class 2 standards, ensuring high-quality performance in military and industrial settings. Its excellent abrasion and impact resistance further safeguard electrical systems from physical damage and environmental factors, extending the lifespan of the protected cables and connections. Whether used for strain relief or environmental sealing, this tubing delivers dependable insulation and protection for various electrical and automotive applications.

Features:

• Highly abrasion and impact-resistant for durable protection

• Easy installation with heat-shrink capability over 120°C

• Adheres to PVC, neoprene, polyolefin, EPR, steel, and aluminum

• Heavy wall construction with excellent insulating, abrasion-resisting, and strain-relieving properties

• Provides a barrier against contaminants with adhesive lining

• Resistant to acids, alkalis, fuel, oil, and solvents

• Suitable for splice sealing, primary insulation, and cable repair

• Ideal for direct burial and submersible applications

• Meets MIL-I-23053/15 Class 2 standards for quality assurance
