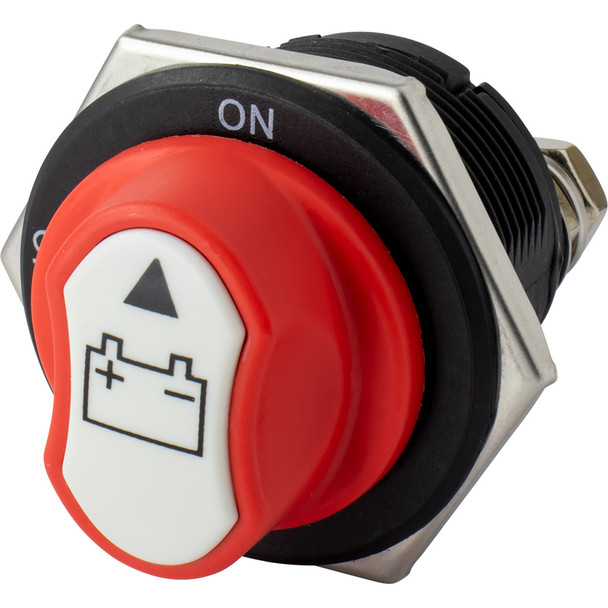

Sea-Dog Mini Battery Switch Key with Removable Knob - 32V, 300A, Part #422730-1

Mini Battery Switch Key with Removable Knob - 32V 300A

These Mini Battery Switches feature a removable knob for extra security. To remove, simply twist the cap to the OUT position and pull. Mini footprint makes it ideal for close quarters. The 422730-1 is rated at 300A continuous and 1000A cranking amps. Installation is as easy as drilling a 2-1/16" hole for the 422730-1, inserting the socket body, tightening the locking nut, and connecting the wires.

Features:

• 3 Switch positions: On, off, and out


• Constructed of machined brass and injection molded nylon

Specifications:

• Switch Face Width: (inch) 2-1/16"


• Volts: 32


• Amps: 300


• Stud Diameter: (inch) 5/16"

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Sea-Dog Mini Battery Switch Key with Removable Knob offers a compact and secure solution for electrical systems requiring reliable on/off control. Designed with a small footprint, it is ideal for tight spaces where installation flexibility is essential. The switch features a removable knob that enhances security; simply twist the cap to the OUT position and pull to detach, preventing unauthorized operation. Constructed from durable machined brass and injection-molded nylon, it ensures longevity and resistance to harsh environments. Rated at 300 amps continuous and capable of handling 1000 amps for cranking, this switch provides robust performance for marine, automotive, and other electrical applications. Installing the switch involves drilling a 2-1/16 inch hole, inserting the socket body, tightening the locking nut, and connecting the wires, making for straightforward setup. The switch offers three positions: ON, OFF, and OUT, providing versatile control options. With a face width of approximately 2-1/16 inches and a stud diameter of 5/16 inch, it fits a variety of wiring configurations. The Sea-Dog Part #422730-1 is a reliable choice for applications demanding secure, high-current switching in limited spaces. Please be aware that this product contains chemicals known to the State of California to cause cancer and reproductive harm; refer to P65Warnings.ca.gov for more information.

Features:

• Three switch positions: On, Off, and Out

• Removable knob for enhanced security

• Constructed of machined brass and injection-molded nylon

• Easy installation with a 2-1/16 inch mounting hole

• Rated for 300A continuous and 1000A cranking amps
