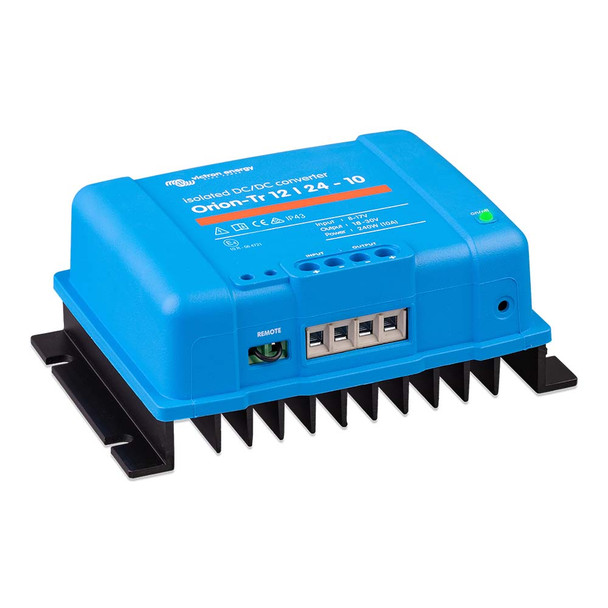

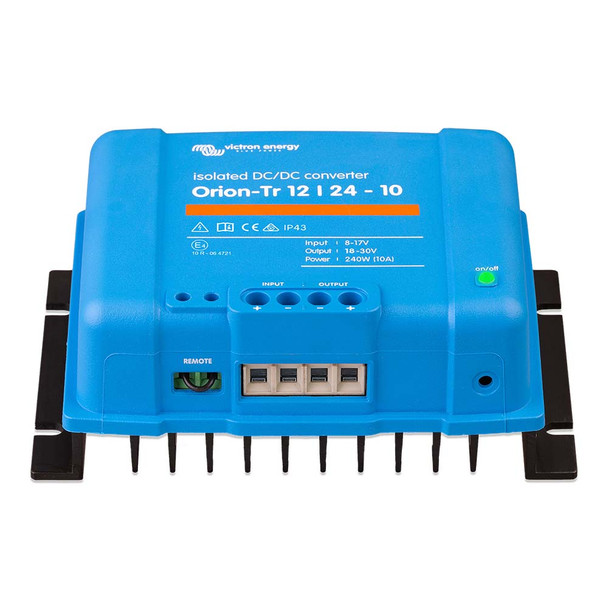

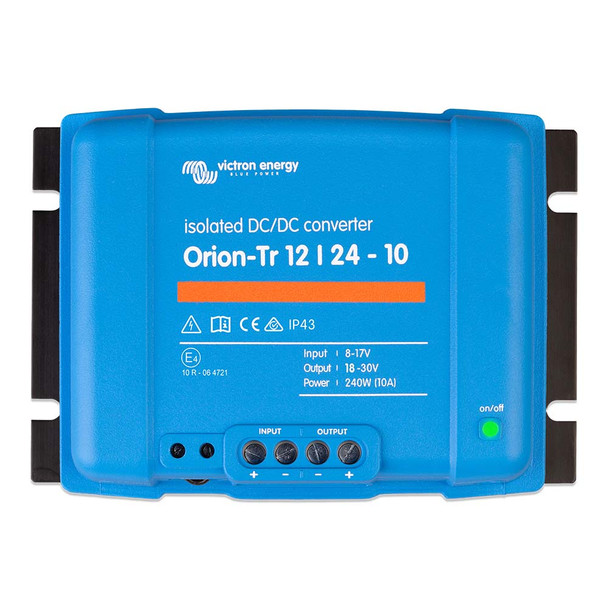

Victron Energy Orion-TR 12/24-10A Isolated DC-DC Converter

Orion-TR 12/24-10A (240W) Isolated DC-DC Converter

Isolated Model - separate in and out (-) leads

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 8-17 V


• Under Voltage Shut Down: 7 V


• Under Voltage Restart: 7.5 V


• Nominal Output Voltage: 12.2 V


• Output Voltage Adjust Range: 10-15 V


• Output Voltage Tolerance: +/- 0,2 V


• Output Noise: 2 mV rms


• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 10 A


• Maximum Output Current (10 S) at Nominal Output Voltage: 15 A


• Short Circuit Output Current: 25 A


• Cont. Output Power at 25 Degrees C: 280 W


• Cont. Output Power at 40 Degrees C: 240 W


• Efficiency: 88 %


• No Load Input Current (2): < 100 mA


• Current Consumption: < 200uA when disabled via its remote port


• Galvanic Isolation: 200 VDC between input, output, and case


• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)


• Humidity: Max. 95 % non-condensing


• DC Connection: Screw terminals


• Maximum Cable Cross-Section: 16 mm AWG6


• Weight: 1.3 kg (3 lb)


• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)


• Safety Standards: EN 60950


• Emission: EN 61000-6-3, EN 55014-1


• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2


• Automotive Directive Standards: ECE R10-5

The Victron Energy Orion-TR 12/24-10A Isolated DC-DC Converter is designed for reliable power conversion in demanding environments. Featuring galvanic isolation between input and output, this model ensures clean and stable voltage regulation with minimal noise, making it ideal for sensitive electronics. The converter supports an input voltage range of 8 to 17 volts, with a nominal output of 12.2 volts and an adjustable range from 10 to 15 volts, allowing customization to meet specific application needs. Its high efficiency of 88% helps reduce energy loss, and the unit is short circuit proof with the ability to be paralleled indefinitely for increased current capacity, providing flexibility for various power requirements. The remote On/Off terminal allows control with low power switches or engine run/stop circuits, eliminating the need for high current switches in input wiring, simplifying installation and operation. The unit is protected against high temperatures, with output power diminishing as ambient temperature rises, ensuring safety and durability in harsh conditions. Built with screw terminals that are easy to install without special tools, the converter features an IP43 enclosure when mounted with the terminals downward, offering protection against dust and moisture. Additional features include a non-replaceable input fuse for models with 12V and 24V inputs, a maximum output current of 15 amps, and a continuous power output of up to 280 watts at 25 degrees Celsius. The converter complies with safety and emission standards (EN 60950, EN 61000-6-3, EN 55014-1) and is suitable for automotive applications following ECE R10-5 standards. Its compact dimensions and lightweight design make it suitable for installation in various mobile or stationary setups, while its operating temperature range from -20 to +55 degrees Celsius ensures reliable performance across diverse environments. For detailed installation instructions and support, refer to the owner’s manual available online.

Features:

• Galvanic isolation between input and output for clean power transfer

• Remote On/Off terminal for easy control with low power switches

• Supports parallel connection for increased output current

• High temperature protection with output power derating

• IP43 rated enclosure when mounted with terminals downward

• Screw terminals for quick and easy installation

• Input fuse (not replaceable) for models with 12V and 24V input

• Adjustable output voltage: 10-15 V with +/- 0.2 V tolerance

• Maximum output current of 15 A, continuous power up to 280 W

• Compact design with lightweight construction

• Complies with international safety and emission standards

• Suitable for automotive and mobile applications
