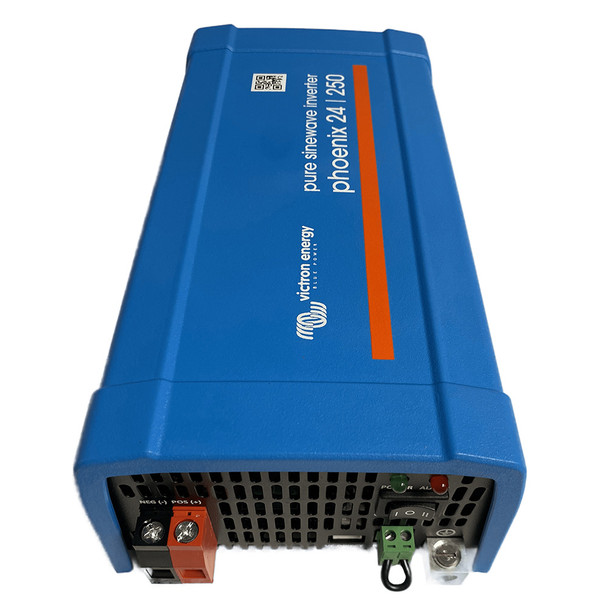

Victron Energy Phoenix Inverter 24VDC 250VA 120VAC VE.Direct with NEMA 5-15R Outlet

Inverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15R

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48VDC.

The VE.Direct port can be connected to:

• A computer (VE.Direct to USB interface cable needed)


• Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels


• Low battery voltage cut-off and restart levels


• Dynamic cut-off: load-dependent cut-off level


• Output voltage 210 - 245V


• Frequency 50 Hz or 60 Hz


• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms


• Please get in touch with your dealer for any returns, repairs, or support issues related to this product.

Phoenix Inverter 24/250 Specifications:

• Continuous Power at 25C: 250VA


• Continuous Power at 25C / 40C: 200 / 175W


• Peak Power: 400W


• Output AC Voltage / Frequency (adjustable): 120VAC +/- 3%


• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V


• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V


• Dynamic (Load Dependent) DC low shut down (fully configurable): Dynamic cut-off


• DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V


• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V


• Maximum Efficiency: 87 / 88 / 88%


• Zero-Load Power: 4,2 / 5,2 / 7,9W


• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W


• ECO Mode Stop and Start Power Setting: Adjustable


• Protection: a - f


• Operating temperature Range: -40 to +65C (fan-assisted cooling) / Derate 1,25% per C above 40C


• Humidity (non-condensing): Max 95%

Enclosure:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)


• Battery-Connection: Screw terminals


• Maximum Cable cross-Section 10mm^2 / AWG8


• Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), AU/NZ (AS/NZS 3112), 120V: Nema 5-15R, GFCI


• Protection Category: IP 21


• Weight: 2,4kg / 5,3lbs


• Dimensions (h x w x d, mm) / (h x w x d, inch): 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 in.

Accessories:

• Remote On-Off: Yes


• Automatic Transfer Switch: Filax

The Victron Energy Phoenix Inverter model PIN242510500 is a reliable 24V DC to 120V AC power inverter designed for versatile applications. This inverter provides a continuous power output of 250VA, making it suitable for powering various household and electronic devices using leisure or automotive batteries rated at 24VDC. Its robust steel chassis and durable plastic cover ensure longevity, while the compact form factor allows easy integration into your power setup. The inverter features multiple AC outlet types, including NEMA 5-15R, Schuko, IEC-320, UK, and AU/NZ, accommodating a wide range of plug configurations. Its IP 21 protection rating ensures safe operation in typical environments, and the unit weighs approximately 5.3 pounds with dimensions of about 3.4 inches high, 6.5 inches wide, and 10.2 inches deep, making it suitable for space-conscious installations. The unit's screw terminals support cable cross-sections up to 10 mm², facilitating secure connections to batteries and loads.

Designed for efficiency and flexibility, the Phoenix inverter includes a VE.Direct port that can connect to computers via a USB interface cable or to smartphones and tablets using a Bluetooth Smart dongle. This connectivity allows users to monitor in- and output voltage, load percentage, and alarm statuses in real time. The inverter's fully configurable parameters include low battery voltage alarms, cut-off and restart levels, dynamic load-dependent cut-off, adjustable output voltage (210-245V), and frequency settings (50Hz or 60Hz). Users can enable or disable ECO mode and set the ECO sense level to optimize power consumption. The inverter's advanced features ensure safe operation with protections labeled a through f and an operating temperature range from -40°C to +65°C, with fan-assisted cooling for thermal management.

Additional features include a remote on/off switch and an automatic transfer switch (Filax), providing seamless power management in various scenarios. The inverter's peak power capability is 400W, with a maximum efficiency of up to 88%, ensuring minimal energy loss during operation. The zero-load power consumption is low, starting at approximately 4.2W, with adjustable ECO mode settings to further reduce power drain when idle. Ideal for off-grid, backup, or mobile power systems, the Victron Phoenix inverter offers a dependable, configurable solution for converting 24V DC battery power into stable, regulated AC power suitable for sensitive electronics and household appliances.

Features:

• Continuous power output of 250VA supports various household and electronic devices

• Multiple AC outlet configurations including NEMA 5-15R, Schuko, IEC-320, UK, and AU/NZ for versatile plug compatibility

• VE.Direct port enables connection to computers and mobile devices for real-time monitoring and configuration

• Fully configurable parameters including low battery alarms, cut-off levels, output voltage, and frequency

• Eco mode with adjustable start/stop power to optimize energy efficiency

• Protection features including multiple safeguards (a-f) for safe operation

• Operating temperature range from -40°C to +65°C with fan-assisted cooling

• Remote on/off switch and automatic transfer switch (Filax) for seamless power management

• High peak power capacity of 400W supports transient loads

• Compact design with a steel chassis and plastic cover for durability and easy installation
