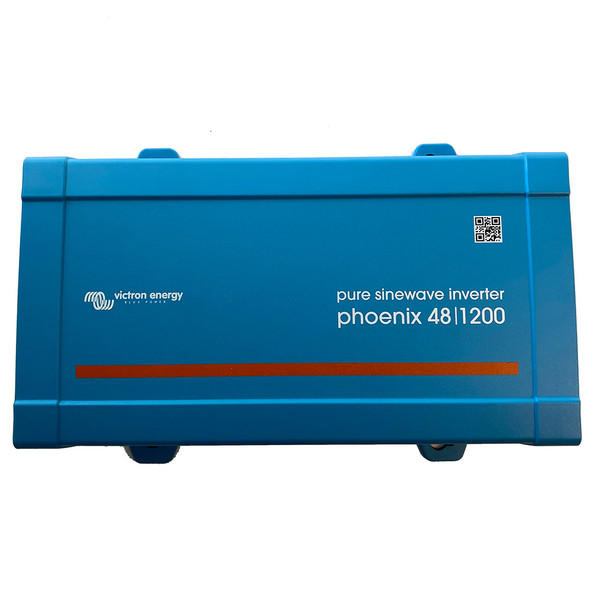

Victron Energy Phoenix Inverter 48VDC 1200VA 120VAC with VE.Direct and NEMA 5-15R Outlet

Phoenix Inverter 48VDC - 1200VA - 120VAC - VE.Direct - NEMA 5-15R

This Phoenix Inverter allows you to power domestic equipment requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 48VDC.

VE.Direct Communication Port

The VE.Direct Port Can Be Connected To:

• A computer (VE.Direct to USB interface cable needed)


• Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully Configurable:

• Low battery voltage alarm trip and reset levels


• Low battery voltage cut-off and restart levels


• Dynamic cut-off: load-dependent cut-off level


• Output voltage 210 - 245V


• Frequency 50 Hz or 60 Hz


• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load, and alarms

Proven Reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED Diagnosis

Please see the manual for a description.

To Transfer the Load to Another AC Source: The Automatic Transfer Switch

For the low-power inverters, we recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Inverter Specifications:

• Cont. Output Power at 25C: 1200VA


• Cont. Output Power at 25C/40C: 1000 / 850W


• Peak Power: 2200W


• Output AC voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%


• Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V


• DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V


• Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff


• DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V


• Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V


• Maximum Efficiency: 91 / 91 / 92%


• Zero Load Power: 7 / 8 / 10W


• Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 1 / 1,5 / 3,0W


• ECO Mode Stop and Start Power Setting: Adjustable


• Protection: a f


• Operating Temperature Range: -40 to +65C (fan-assisted cooling) Derate 1,25% per C above 40C


• Humidity (non-condensing): Max 95%

Enclosure Specifications:

• Material Color: Steel chassis and plastic cover (blue Ral 5012)


• Battery-Connection: Screw terminals


• Maximum Cable Cross-Section: 35 / 25 / 25mm2 / AWG2 / 4 / 4


• Standard AC outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) / 120V: Nema 5-15R, GFCI


• Protection category: IP 21


• Weight: 7,4kg / 16,3lbs


• Dimensions (h x w x d): 117 x 232 x 327mm / (4.6 x 9.1 x 12.9 inch)

Accessories:

• Remote On-Off: Yes


• Automatic Transfer Switch: Filax

Standards:

• Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)


• EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3


• Automotive Directive: ECE R10-4

The Victron Energy Phoenix Inverter model PIN482122500 is a reliable and fully configurable power solution designed to convert 48VDC battery power into 120VAC or 230VAC household electricity. Its robust design features proven full bridge and toroidal transformer topology, ensuring high efficiency and durability for demanding applications. This inverter can supply continuous power of up to 1200VA, with peak power reaching 2200W, making it suitable for powering household appliances, LED and halogen lighting, and power tools. Its ability to handle high start-up power loads ensures seamless operation of devices that require initial surge currents.

Equipped with a VE.Direct communication port, the inverter allows for easy integration with computers, smartphones, and tablets via USB or Bluetooth Smart dongle, enabling remote monitoring and configuration. The inverter offers extensive configurability, including adjustable output voltage (210-245V), frequency (50Hz or 60Hz), and various low battery voltage alarms and cut-off settings. ECO mode can be toggled on or off to optimize power consumption, automatically switching to standby when load drops below 15W, with adjustable intervals for turning back on. A remote on/off switch can be connected to control the inverter remotely, providing additional convenience in various installation scenarios.

Designed for versatility and safety, the Phoenix inverter features a steel enclosure with a protective IP21 rating, screw terminals for secure battery connection, and multiple AC outlet options including NEMA 5-15R, Schuko, IEC-320, UK (BS 1363), and AU/NZ (AS/NZS 3112). It operates effectively across a wide temperature range from -40°C to +65°C with fan-assisted cooling to prevent overheating. The unit is protected against short circuits and overheating, ensuring long-term reliability even in challenging environments. Optional accessories such as remote on/off controls and the Filax Automatic Transfer Switch enhance its usability in off-grid power systems or backup configurations.

This inverter complies with international safety and EMC standards, making it suitable for both residential and mobile applications. Its compact design and lightweight construction make installation straightforward, while the included manual provides detailed guidance on setup and operation. Whether used for renewable energy systems, backup power, or mobile applications, the Victron Energy Phoenix 48V inverter offers a high-quality, dependable power conversion solution for demanding users.

Features:

• Power Output: 1200VA continuous, 2200W peak for reliable power conversion

• VE.Direct Port: Enables remote monitoring and configuration via USB or Bluetooth

• Fully Configurable Settings: Includes adjustable voltage, frequency, alarm levels, and ECO mode

• High Start-up Power: Supports loads such as LED and halogen lamps, power tools

• Built-in Safety: Short-circuit proof, overheating protection, fan-assisted cooling

• Multiple AC Outlets: NEMA 5-15R, Schuko, IEC-320, UK, AU/NZ options for versatile connections

• Remote Control: Compatible with remote on/off switches for added convenience

• Robust Enclosure: Steel chassis with IP21 protection rating for durability

• Wide Operating Range: -40°C to +65°C with temperature derating

• Standards Compliance: Meets international safety and EMC standards for safe use
