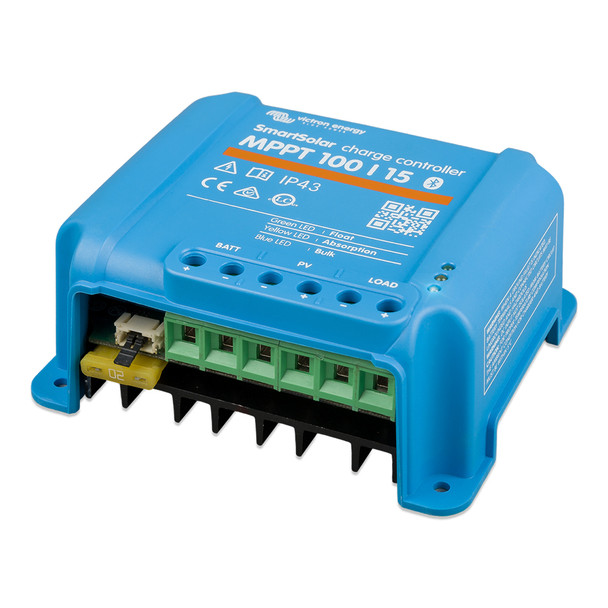

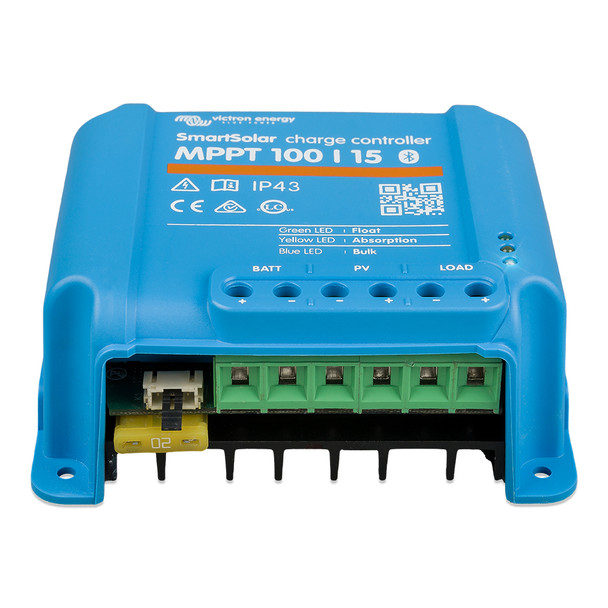

Victron Energy SmartSolar MPPT Charge Controller 100V 15AMP

SmartSolar MPPT Charge Controller - 100V - 15AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.


• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices


• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.


• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.


• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.


• Programmable battery charge algorithm See the software section on our website for details


• Day/night timing and light dimming option See the software section on our website for details


• Internal temperature sensor Compensates absorption and float charge voltage for temperature.


• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Charge Controller model SCC110015060R offers advanced solar energy management with its ultra-fast Maximum Power Point Tracking (MPPT) technology. Designed for 100V systems, it efficiently maximizes energy harvest even under variable weather conditions by tracking the optimal power point up to 30% more effectively than PWM controllers. Its Bluetooth Smart built-in allows seamless wireless setup, monitoring, and firmware updates via compatible devices, while the VE.Direct port provides reliable wired data communication with GX series products, PCs, or other compatible devices.
Built with intelligent battery management features, the controller ensures longer battery life by monitoring charge levels and adjusting load disconnection to prevent over-discharge. During periods of insufficient sunlight, it gradually increases the load disconnect level to maintain battery health and cycles the battery to nearly full capacity at least once a week. The programmable charge algorithm enables customization of charging profiles, and the day/night timing with light dimming options allow tailored control based on environmental conditions.
The internal temperature sensor automatically adjusts absorption and float voltages for optimal performance across temperature variations, while optional external sensors via Bluetooth offer additional monitoring of battery voltage and temperature. Its load output is short circuit proof and can disconnect loads when batteries reach a pre-set discharge voltage, protecting your batteries from damage. The controller's robust design aligns with UL safety standards, ensuring reliable operation in demanding environments.
Whether used in remote off-grid applications or integrated into larger solar power systems, the Victron Energy SmartSolar MPPT Charge Controller guarantees efficient energy conversion, extended battery lifespan, and flexible system integration. Its compact form factor and comprehensive feature set make it an essential component for maximizing solar energy utilization and maintaining system longevity.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• VE.Direct port for wired data connection to GX products, PC, or other devices

• Ultra-fast MPPT technology improves energy harvest by up to 30%

• Load output with over-discharge protection and short circuit proof design

• Intelligent battery management to prolong battery life and optimize charge cycles

• Programmable charge algorithms for customized system control

• Day/night timing and light dimming options for environmental adaptability

• Internal temperature sensor for voltage compensation based on temperature

• Optional external Bluetooth-enabled sensors for voltage and temperature monitoring
