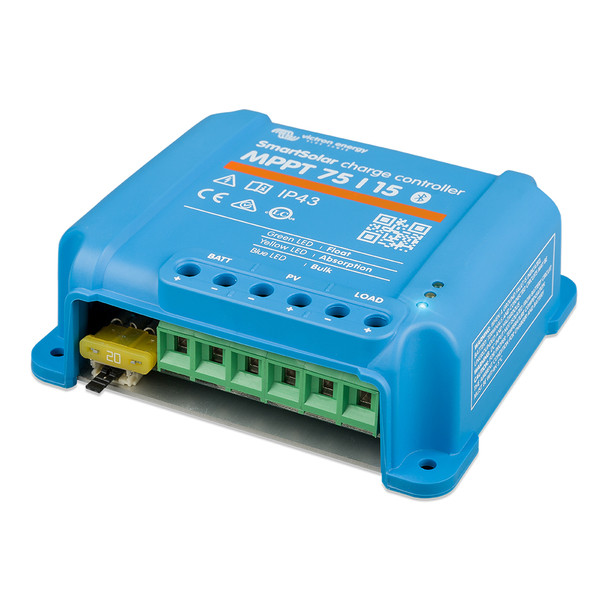

Victron Energy SmartSolar MPPT Solar Charge Controller 75V 15Amp with Bluetooth and Battery Management

SmartSolar MPPT Charge Controller - 75V - 15AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.


• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices


• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.


• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.


• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.


• Programmable battery charge algorithm See the software section on our website for details


• Day/night timing and light dimming option See the software section on our website for details


• Internal temperature sensor Compensates absorption and float charge voltage for temperature.


• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Solar Charge Controller model SCC075015060R is engineered to deliver optimal solar energy utilization for off-grid or grid-tied systems. Its ultra-fast MPPT algorithm ensures maximum efficiency even under rapidly changing light conditions, making it ideal for installations where sunlight varies frequently. The built-in Bluetooth Smart technology provides a user-friendly wireless interface, enabling easy configuration, real-time monitoring, firmware updates, and system diagnostics directly from your smartphone or tablet. This feature simplifies system management and helps maintain peak performance over time. The VE.Direct port offers a reliable wired connection for integration with other Victron GX products or PC-based monitoring solutions, enhancing system flexibility.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• VE.Direct port for wired data connection to GX devices or PCs

• Ultra-fast MPPT technology improves energy harvest by up to 30% over PWM controllers

• Load output prevents battery over-discharge with configurable disconnection

• Intelligent Battery Life management maintains battery health by monitoring charge cycles and adjusting load disconnect levels

• Programmable charge algorithms allow customization based on system needs

• Day/night timing and light dimming options via software for optimized control

• Internal temperature sensor compensates charging voltages for temperature fluctuations

• Optional external sensing with Bluetooth Battery Sense or BMV-712 for accurate battery voltage and temperature data
