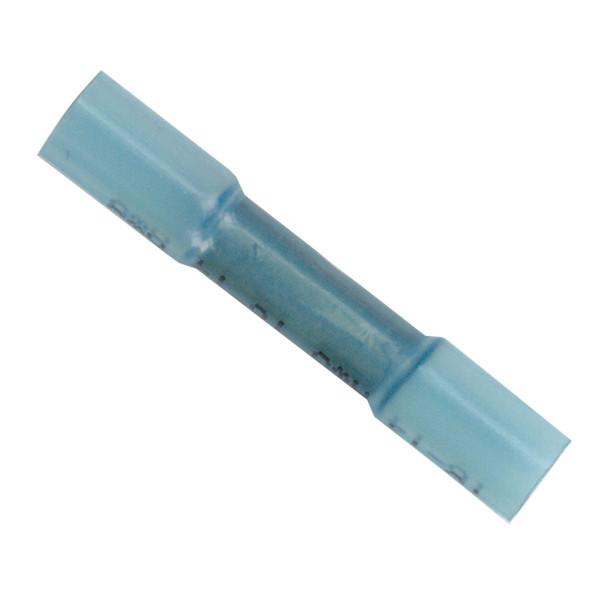

Ancor 16-14 Heatshrink Butt Connectors – 100-Pack for Marine and Automotive Wiring

16-14 Heatshrink Butt Connectors - 100-Pack

Guage Size: 16-14
Quantity: 100

Features:

• Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.




• Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.




• Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.




• UL Listed and CSA Recognized




• Highest shrink ratio - shrinks to 1/3 original size.




• Shrinks at 257 deg. F/125 deg. C.




• Operating temperature range 40 deg. C to 110 deg. C.




• ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing




• Shrinks to form a water tight seal and the ultimate vibration and strain relief.




• Tinned for corrosion resistance.




• Pure copper for maximum current flow.




• Brazed seam for maximum strength.




• Wire range: 16-14




• mm: 1-2



WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Ancor 16-14 Heatshrink Butt Connectors provide a reliable and durable solution for electrical connections in marine, automotive, and industrial applications. Designed with cross-linked polyolefin tubing, these connectors are significantly stronger than traditional PVC connectors and resist burning or melting under high heat conditions. The heat-activated adhesive lining ensures an impervious seal against salt water, oil, acids, and sunlight, while also offering strain relief to protect your wiring connections from vibration and mechanical stress.

Constructed with a nylon insulator, these connectors are preferred by professionals for their marine-grade resistance to sunlight, water, oil, chemicals, and vibration. They are UL Listed and CSA Recognized, indicating compliance with safety standards. The connectors feature a high shrink ratio, shrinking to one-third of their original size when exposed to 257°F (125°C), ensuring a tight, waterproof seal. They are suitable for a broad operating temperature range from 40°C to 110°C, making them ideal for various environmental conditions.

Manufactured with pure copper and brazed seams, these connectors maximize current flow while providing maximum strength and corrosion resistance. The tinned finish adds further protection against corrosion, ensuring long-term performance. Designed to accommodate wire sizes from 16 to 14 gauge, they are versatile for multiple wiring projects. The connectors' high-quality construction and reliable sealing capabilities make them suitable for critical electrical connections where durability is paramount.

Features:

• Cross-linked polyolefin tubing offers superior strength and heat resistance compared to PVC.

• Heat-activated adhesive lining provides a waterproof seal and strain relief.

• Nylon insulator offers marine-grade resistance to sunlight, water, oil, chemicals, and vibration.

• UL Listed and CSA Recognized for safety and quality assurance.

• Shrinks to one-third of original size at 257°F (125°C) for a secure fit.

• Operates within a temperature range of 40°C to 110°C (104°F to 230°F).

• Tinned copper construction enhances corrosion resistance and electrical conductivity.

• Brazed seam ensures maximum strength and durability.

• Designed for wire sizes 16-14 gauge, with a shrink diameter of 1-2 mm.
