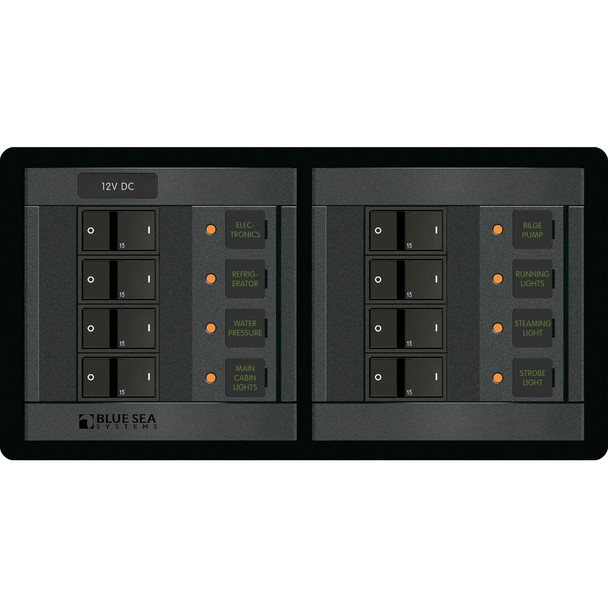

Blue Sea Systems 1225 12V DC 8-Position Horizontal Power Distribution Panel

12 Volt DC 8 Position - Horizontal

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 8

• Nominal Voltage: 12V DC

• Maximum Amperage*: 100A per bus

• Height: 4.75" (120.65mm)

• Width: 9.25" (234.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 3.84lb (1.74kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 1225 is a versatile 12 Volt DC power distribution panel designed for marine, RV, and industrial applications. Featuring eight horizontal positions, this panel allows users to efficiently manage multiple circuits with ease. It supports between 4 to 32 branch circuits, each protected by installed 15 Ampere circuit breakers, ensuring safe and reliable operation. The panel integrates seamlessly with optional voltmeters, ammeters, and digital multimeters for comprehensive system monitoring, making it an ideal choice for users requiring precise electrical management.
Constructed with durable materials, the panel measures approximately 4.75 inches in height, 9.25 inches in width, and 3 inches deep, providing a compact yet robust solution for electrical distribution needs. The maximum amperage per bus is rated at 100A, which depends on proper fusing and wiring practices. Its lightweight design, weighing about 3.84 pounds, allows for straightforward installation in various settings. Included with the panel are eight single-pole 15A circuit breakers and a square format label set, facilitating organized and clear circuit identification.
The panel's design emphasizes safety and flexibility, offering multiple circuit configurations to suit complex electrical systems. The included label kit ensures clarity in system layout, and the panel's construction adheres to high standards for durability and performance. For detailed guidance, an owner’s manual is available online, providing installation instructions, wiring diagrams, and maintenance tips. Note that this product may contain chemicals known to cause reproductive harm, so proper handling and disposal are recommended, as detailed in the provided safety warning.Whether used in marine vessels, RVs, or industrial settings, the Blue Sea Systems 1225 offers a reliable, organized, and scalable solution for managing multiple electrical circuits in a compact form factor.

Features:

• Supports 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Compatible with voltmeters, ammeters, and digital multimeters for system monitoring

• Includes 4205-Square Format Label Set for organized circuit identification

• Horizontal 8-position configuration for efficient space utilization

• Maximum amperage per bus rated at 100A, dependent on proper wiring and fuse use
