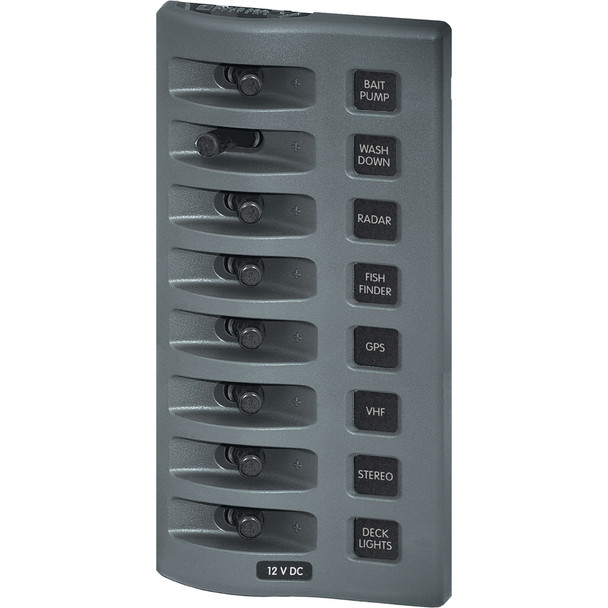

Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Panel - 8 Position

WeatherDeck 12V DC Waterproof Switch Panel - 8 Position

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 8
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 7.70"(195.58 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 1.55lb (0.7 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck 4309 is an 8-position waterproof switch panel designed for reliable operation in harsh environments. Constructed from reinforced polycarbonate, this panel offers durability and resistance against the elements, making it ideal for marine, RV, and off-road applications. The integrated switch guards help prevent accidental activation, ensuring safe and controlled operation. Featuring a UV-stabilized weather-resistant faceplate that snaps on and off, the panel provides easy access to internal components and conceals mounting screws for a clean installation. When properly mounted with a watertight gasket, the panel front is rated IP67, offering excellent protection against water ingress and dust, which is critical for outdoor use.

Features:

• Weatherproof design with IP67 rating for water and dust resistance

• Eight switch positions for versatile control options

• Integrated switch guards to prevent accidental switching

• Panels can be mounted in four different orientations for flexible installation

• UV stabilized faceplate resists sun damage and weathering

• Constructed from reinforced polycarbonate for durability

• Maximum current per circuit is 15A at 12V DC, with a total rating of 45A

• Designed for 12V DC and 24V DC systems

• Simple snap-on faceplate for easy maintenance and concealment of mounting hardware
