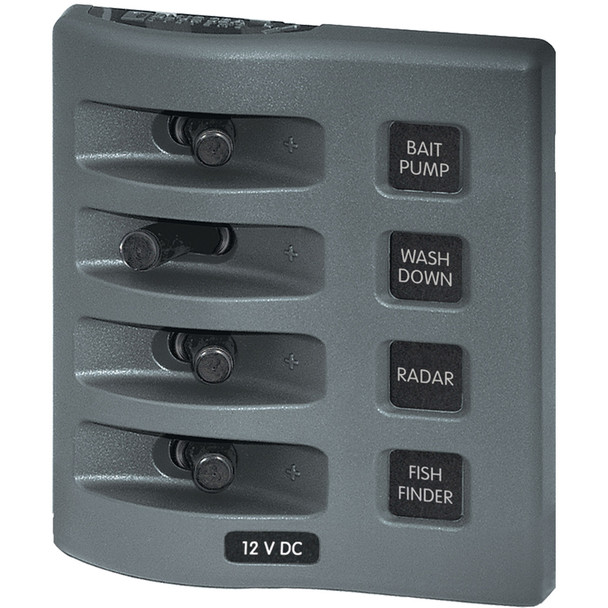

Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Panel - 4 Position

WeatherDeck 12V DC Waterproof Switch Panel - 4 Position

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 4
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 4.30"(109.22 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 0.90lb (0.41 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems WeatherDeck 4305 switch panel provides reliable control for your 12V or 24V DC electrical systems in demanding environments. Crafted from reinforced polycarbonate, this panel offers durability and resistance to harsh weather conditions, making it ideal for marine, RV, or industrial applications. Its waterproof front rated IP67 ensures protection against water ingress when mounted with the included watertight gasket, allowing safe operation even in wet conditions. The panel's UV-stabilized faceplate snaps on and off easily, providing straightforward access to internal components and concealing mounting screws for a clean appearance. Designed with four switch positions, this panel allows you to manage multiple circuits conveniently, with integrated switch guards that help prevent accidental activation or deactivation. The panel supports a maximum of 15 amps per circuit, with a total cumulative rating of 45 amps, suitable for a variety of electrical loads. Its compact dimensions and versatile mounting options enable installation in tight spaces and in four different orientations, offering flexibility for custom setups. The WeatherDeck 4305 is an essential component for safe, secure, and efficient electrical management in outdoor or wet environments. Please note, this product exposes users to chemicals that may pose health risks; for detailed safety information, visit the P65Warnings.gov link provided. For detailed installation instructions and maintenance, consult the owner’s manual available online.

Features:

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Front rated IP67 waterproof protection with watertight gasket when properly mounted

• UV stabilized weather-resistant faceplate snaps on and off for easy access and concealment of mounting screws

• Supports 12V DC and 24V DC systems with a maximum of 15A per circuit

• Cumulative rating of 45A for multiple circuits

• Constructed from reinforced polycarbonate for durability and weather resistance

• Compact size suitable for tight installation spaces

• Versatile mounting options for flexible installation
