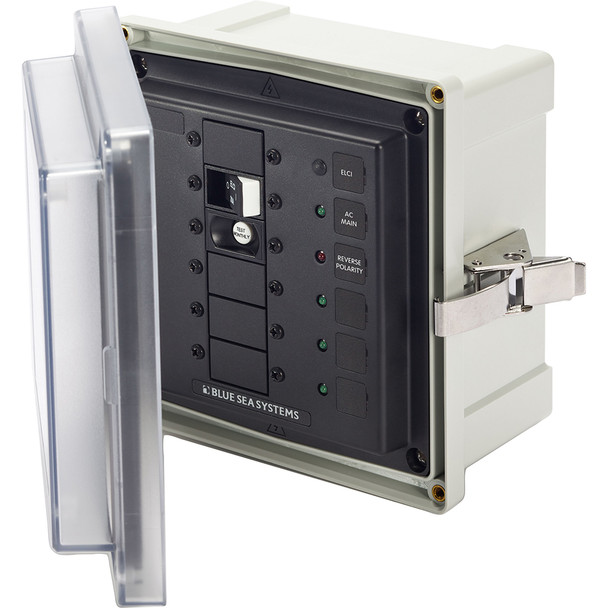

Blue Sea Systems 3116 SMS Panel Enclosure with ELCI (30A) and 3 Blanks - 120V

3116 - SMS Panel Enclosure with ELCI (30A) and 3 Blanks - 120V

The 3116 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for back lighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Blank
• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC)

In the Box:

• 3116 Enclosure
• Glands x 5
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3116 SMS Panel Enclosure is engineered for marine and industrial electrical applications, providing a secure housing for ELCI (Equipment Leakage Circuit Interrupter) main circuit breakers and large-frame devices. Designed to meet ABYC E-11 standards when used with an ELCI main breaker and mounted within 10 feet of an AC shore power inlet, this enclosure ensures safety and compliance. Its robust construction features a glass-filled polycarbonate base that offers durability and resistance to harsh environments. The clear cover allows for quick visual inspection of circuit breaker status without opening the enclosure, enhancing operational efficiency. The overlapping cover design provides increased strength and gasket protection, with an oversized, seamless PUR gasket ensuring a watertight seal. An easily removable stainless steel hinge pin facilitates unobstructed installation, while a stainless steel latch secures the cover without penetrating the enclosure, maintaining integrity against moisture ingress.

The enclosure includes blank circuit positions that accommodate Carling Technologies A and C Series Flat Rocker and ELCI main circuit breakers, offering flexibility for custom configurations. Waterproof glands are provided for cable entry, ensuring a sealed environment. Integrated LED lights provide backlighting and ON indication, improving visibility in low-light conditions. Measuring approximately 7.6 inches high by 7.4 inches wide, and 4.7 inches deep, the overall enclosure is compact yet capable of housing multiple components, with the internal circuit breaker configuration comprising one 30A ELCI main breaker and three blank positions for expansion. The package includes the enclosure, five waterproof glands, labels, mounting hardware, and an instruction manual for straightforward installation and setup.

This product is sold individually and is suitable for marine or industrial electrical systems requiring a secure, compliant, and easily accessible breaker enclosure. Constructed by Blue Sea Systems, the 3116 offers reliable performance in demanding environments, ensuring electrical safety and system integrity. Please be aware that this product contains chemicals known to cause reproductive harm under California law, and additional safety information can be found at P65Warnings.ca.gov.

Features:

• Designed for ELCI main circuit breakers and large-frame devices

• Glass-filled polycarbonate base for durability

• Clear cover for easy circuit breaker status viewing

• Overlapping cover with gasket for enhanced strength and waterproofing

• Seamless PUR gasket for watertight seal

• Removable stainless steel hinge pin for easy installation

• Stainless steel latch secures cover without penetrating the enclosure

• Blank circuit positions compatible with Carling Technologies A and C Series breakers

• Includes waterproof glands for cable entry

• Integrated LED lights for backlighting and ON indication
