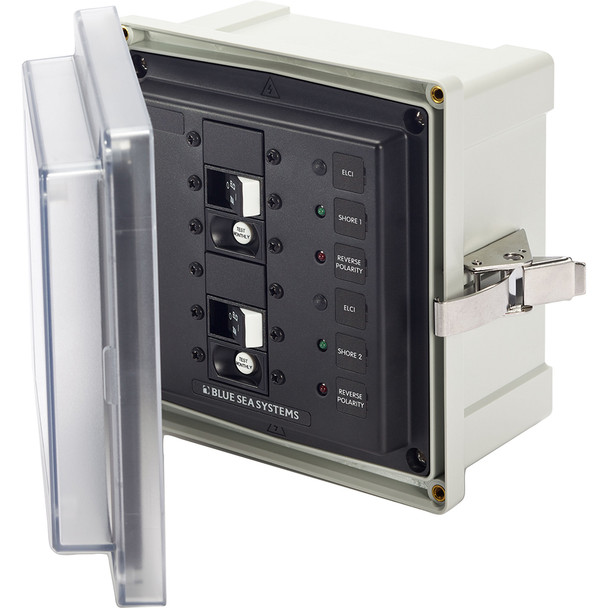

Blue Sea Systems 3117 SMS Panel Enclosure with 2 ELCI (30A) - 120V AC

3117 - SMS Panel Enclosure with 2 ELCI (30A) - 120V AC

The 3117 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for back lighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 2 x ELCI (30A) Main 120V
• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 2 x Red (Reverse Polarity - 120V AC and 2 x Green ON (120V AC)

In the Box:

• 3117 Enclosure
• Glands x 6
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3117 SMS panel enclosure is designed to house Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. It is suitable for marine and industrial applications where protection and easy monitoring are essential. Constructed with a durable glass-filled polycarbonate base, this enclosure provides robust protection while maintaining a lightweight profile. Its clear cover allows quick visual inspection of circuit breaker status without opening the enclosure, enhancing safety and operational efficiency. The overlapping cover design increases strength and gasket protection, ensuring reliable sealing in harsh environments. The oversized, seamless PUR gasket offers excellent waterproof performance, making it ideal for outdoor or damp locations. The enclosure features a stainless steel hinge pin that is easily removable for unobstructed installation and a stainless steel latch that secures the cover without penetrating the enclosure, preserving the integrity of the enclosure's seal. Customizable blank apertures are included for flexible breaker loading, accommodating Carling Technologies A and C Series Flat Rocker breakers, as well as ELCI main circuit breakers. Waterproof glands are supplied for cable entry, and integrated LED indicators provide backlighting and ON status alerts, simplifying operation and troubleshooting. This enclosure meets ABYC E-11 standards when used with an ELCI main breaker and mounted within 10 feet of the AC shore power inlet, ensuring compliance with marine safety regulations. The enclosure measures approximately 7.6 inches high, 7.4 inches wide, and 4.7 inches deep, with a mounting footprint of 6 inches by 6 inches. It includes six waterproof glands, labels, mounting hardware, and an instruction manual for straightforward installation. The system is powered by two red LEDs indicating reverse polarity and two green LEDs for operational status, providing clear visual cues. This product is sold individually and is suitable for use in demanding environments where reliable electrical protection is critical. Please note that it contains chemicals recognized by California as potentially harmful, and appropriate precautions should be taken during handling and installation.

Features:

• Blank apertures for custom breaker loading

• Glass filled polycarbonate base for durability

• Clear cover for easy circuit breaker status viewing

• Overlapping cover for enhanced strength and gasket protection

• Seamless PUR gasket for waterproof sealing

• Removable stainless steel hinge pin for easy installation

• Stainless steel latch secures cover without damaging enclosure

• Blank circuit positions for flexible breaker configurations

• Includes waterproof glands for cable entry

• LED lights for backlighting and ON status indication
