Description

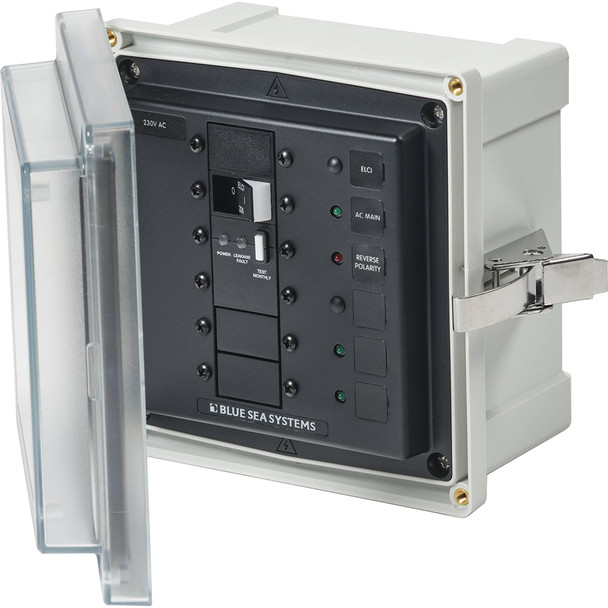

3123 - SMS Panel Enclosure with ELCI (32A) 3 Blanks - 230V AC
The 3123-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 1 x ELCI (32A) Main 230V and 3 x Blanks
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)
In the Box:
- 3123 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
The Blue Sea Systems 3123 SMS Panel Enclosure is designed for secure housing of Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large-frame devices. Constructed with a durable glass-filled polycarbonate base, this enclosure offers robust protection while maintaining a compact footprint suitable for marine and industrial applications. The clear cover allows for immediate visual confirmation of circuit breaker status, reducing maintenance time and increasing safety. Its overlapping cover design enhances strength and gasket protection, ensuring reliable sealing even in harsh environments. The oversized, seamless PUR gasket provides additional security against water ingress, while the stainless steel hinge pin and latch facilitate easy access and secure closure without penetrating the enclosure body. Blank apertures are included for custom breaker configurations, accommodating Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers, making it adaptable to various system setups. Waterproof glands are provided for secure wiring connections, and integrated LED lights deliver clear backlighting and ON indicators for easy operation. The enclosure is designed to meet ABYC E-11 standards when used with an ELCI Main circuit breaker and mounted within 10 feet of the AC shore power inlet, ensuring compliance with marine safety regulations. This enclosure measures approximately 7.6 inches high, 7.4 inches wide, and 4.7 inches deep, making it suitable for tight installation spaces while providing ample room for circuit management. The package includes the enclosure, six waterproof glands, labels, mounting hardware, and an instruction manual, making installation straightforward. Ideal for marine, RV, or industrial applications, the Blue Sea Systems 3123 provides a reliable, customizable solution for electrical safety and management in 230V AC systems.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base for durability
- Clear cover for easy circuit breaker status viewing
- Overlapping cover design for strength and gasket protection
- Seamless PUR gasket for waterproof sealing
- Removable stainless steel hinge pin for easy installation
- Stainless steel latch secures cover without penetrating enclosure
- Blank circuit positions compatible with Carling A and C Series breakers and ELCI Main circuit breakers
- Includes waterproof glands for secure wiring connections
- LED backlighting and ON indicator lights for visibility and status monitoring
