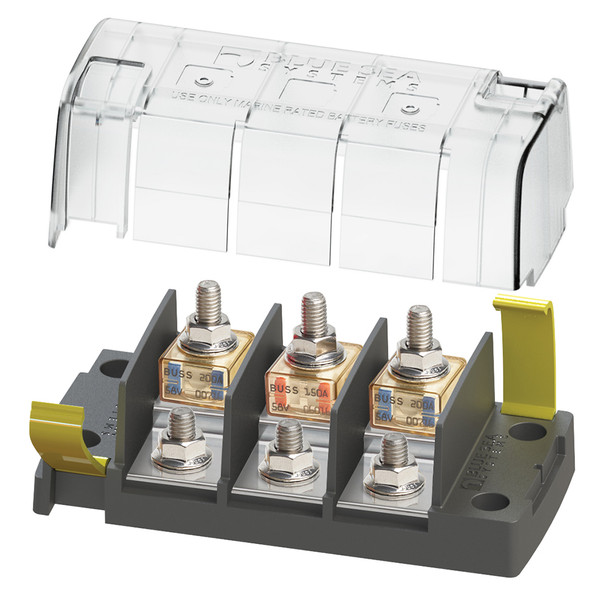

Blue Sea Systems 5194 MRBF Surface Mount 3-Circuit Fuse Block with Independent Source

Surface Mount 3 Circuit Fuse Block - Independent Source

• Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
• The independent source fuse block (5194) is ideal for 3 output battery chargers
• The common source fuse block (5196) provides 3 loads from a single source
• Clip-on cover insulates terminal connections
• Versatile wiring options allow all wires to come out a single side
• Label recesses for easy circuit identification
• One-piece stainless flange nuts ensure safe and secure connections

Specifications

• Ignition Protected: Yes
• Maximum Amperage: 240 per circuit
• Maximum Voltage: 58v DC
• Maximum Torque: 100 in-lb
• Terminal Stud Size: M8 (5/16"-18)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5194 MRBF surface mount fuse block is designed for high amperage circuit protection with a compact and versatile layout. Capable of accommodating three MRBF fuses, this fuse block consolidates multiple circuits into a single, organized unit, making it ideal for applications such as 3 output battery chargers or systems requiring independent power sources. Its surface mount design allows for easy installation in tight spaces, providing a reliable and secure connection for your electrical system. The clip-on cover insulates all terminal connections, enhancing safety and preventing accidental contact during operation.
Constructed with durability and safety in mind, the fuse block features a stainless steel flange nut for secure fastening and corrosion resistance. The wiring options are flexible, allowing all wires to exit from a single side for simplified wiring and maintenance. Recessed labels enable quick circuit identification, reducing installation errors and streamlining troubleshooting. With a maximum voltage of 58 volts DC and a maximum current of 240 amps per circuit, this fuse block is suitable for demanding marine, RV, and industrial applications. Its ignition protection ensures safe operation in environments with potential ignition sources, and the M8 terminal stud size facilitates robust connections. Overall, the Blue Sea Systems 5194 fuse block offers a dependable solution for distributing power safely and efficiently in complex electrical systems.
Note that this product contains chemicals known to the State of California to cause reproductive harm, and appropriate precautions should be taken during installation and handling.

Features:

• Accommodates three MRBF fuses for consolidated high amperage circuit protection

• Independent source fuse configuration ideal for 3 output battery chargers

• Common source fuse option provides 3 loads from a single source

• Clip-on cover insulates terminal connections for safety

• Flexible wiring options allow all wires to exit from a single side

• Recessed labels facilitate easy circuit identification

• One-piece stainless steel flange nuts ensure secure and corrosion-resistant connections

• Ignition protected for safe operation in ignition-sensitive environments

• Maximum amperage of 240 amps per circuit

• Maximum voltage of 58 volts DC
