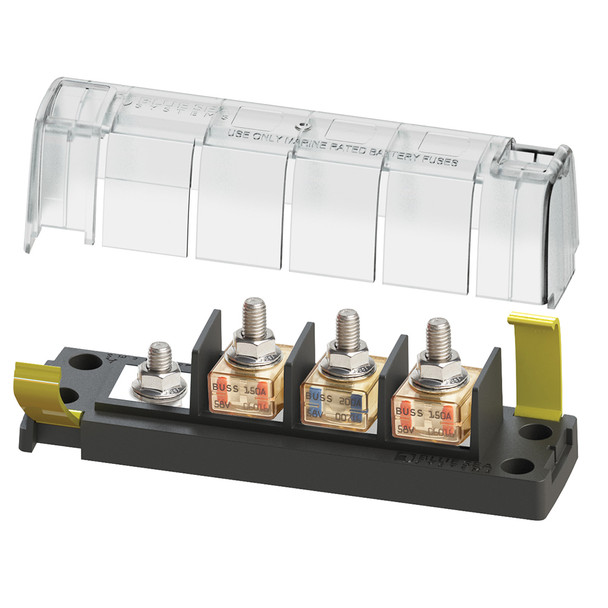

Blue Sea Systems 5196 MRBF Surface Mount 3 Circuit Fuse Block - Common Source for High Amperage Protection

MRBF Surface Mount 3 Circuit Fuse Block - Common Source

• Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection
• The independent source fuse block (5194) is ideal for 3 output battery chargers
• The common source fuse block (5196) provides 3 loads from a single source
• Clip-on cover insulates terminal connections
• Versatile wiring options allow all wires to come out a single side
• Label recesses for easy circuit identification
• One-piece stainless flange nuts ensure safe and secure connections

Specifications

• Ignition Protected: Yes
• Maximum Amperage: 300a per block/240a per circuit
• Maximum Voltage: 58v DC
• Maximum Torque: 100 in-lb
• Terminal Stud Size: M8 (5/16"-18)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5196 MRBF Surface Mount 3 Circuit Fuse Block is designed to provide reliable and consolidated high amperage circuit protection for your electrical system. With its ability to accommodate three MRBF fuses, this fuse block simplifies wiring and enhances safety for multiple high-current loads. Its versatile design supports wiring options that allow all wires to exit from a single side, making installation straightforward and neat. The clip-on cover effectively insulates terminal connections, reducing the risk of accidental shorts or contact, while label recesses facilitate easy circuit identification for maintenance and troubleshooting. Constructed with a stainless flange nut, the fuse block offers secure and corrosion-resistant connections suitable for demanding environments, including marine and automotive applications. The unit's ignition protection makes it safe to use in ignition-sensitive areas, and its maximum voltage rating of 58V DC ensures compatibility with a wide range of systems. The fuse block supports a maximum of 300 amps per unit and 240 amps per circuit, with terminal studs sized at M8 (5/16-inch-18), and requires a torque of 100 inch-pounds for proper installation. This product is ideal for applications such as battery chargers, where multiple high-current circuits need reliable protection. It is important to note that this product contains chemicals known to California to cause reproductive harm, and users should review safety information at P65Warnings.ca.gov. Whether used in automotive, marine, or industrial settings, the Blue Sea Systems 5196 MRBF fuse block offers robust, versatile, and secure circuit protection for your high-current electrical needs.

Features:

• Accommodates three MRBF fuses for consolidated high amperage circuit protection

• Independent source fuse block (5194) ideal for three output battery chargers

• Common source fuse block (5196) provides three loads from a single source

• Clip-on cover insulates terminal connections for safety

• Versatile wiring options allow all wires to exit from a single side

• Label recesses for easy circuit identification

• One-piece stainless flange nuts ensure safe and secure connections

• Ignition protected for safe use in ignition-sensitive areas

• Maximum amperage of 300A per block and 240A per circuit

• Maximum voltage rating of 58V DC

• Terminal stud size: M8 (5/16"-18)

• Requires a torque of 100 in-lb for installation
