Description

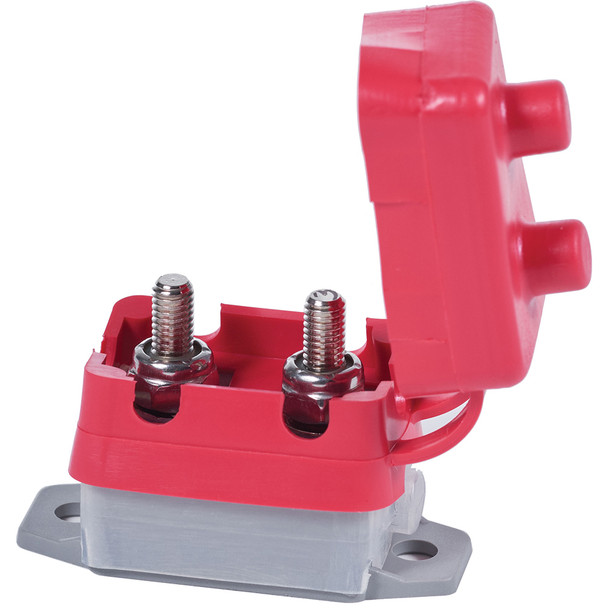

7153 Short Stop Circuit Breaker - 20A
- Corrosion Resistant Material
- IP 64 Water Resistant Boot
- Push to Reset Only
- Interrupt Capacity: 2,500A @ 28VDC
- Red insulating boot included in retail package
Specifications
- Amperage: 20A DC
- Maximum Voltage: 28V DC
- Interrupt Capacity: 2500A @ 28V DC
- Minimum Operating Temperature: -10 C
- Maximum Operating Temperature: 60 C
- Screw Terminal Torque: 24 in-lb (2.71 Nm)
- Terminal Stud: #10-32"
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Blue Sea Systems 7153 Short Stop Circuit Breaker provides reliable overcurrent protection for DC electrical systems up to 28 volts. Designed with corrosion-resistant materials, this circuit breaker ensures durability in harsh environments. The IP64-rated water-resistant boot offers added protection against moisture and water ingress, making it suitable for marine, RV, and other outdoor applications. The push-to-reset feature enables quick and easy reset after tripping, minimizing downtime and simplifying operation in critical situations. With an interrupt capacity of 2,500 amps at 28VDC, the 7153 model can handle high-current faults safely and effectively. Its compact size and robust construction make it an ideal choice for space-constrained systems where dependable circuit protection is essential.
Features:
- Corrosion resistant material for durability in harsh environments
- IP64 water-resistant boot for moisture protection
- Push to reset operation for quick system recovery
- High interrupt capacity of 2,500A at 28VDC for safety during faults
- Includes a red insulating boot for visibility and safety
