Description

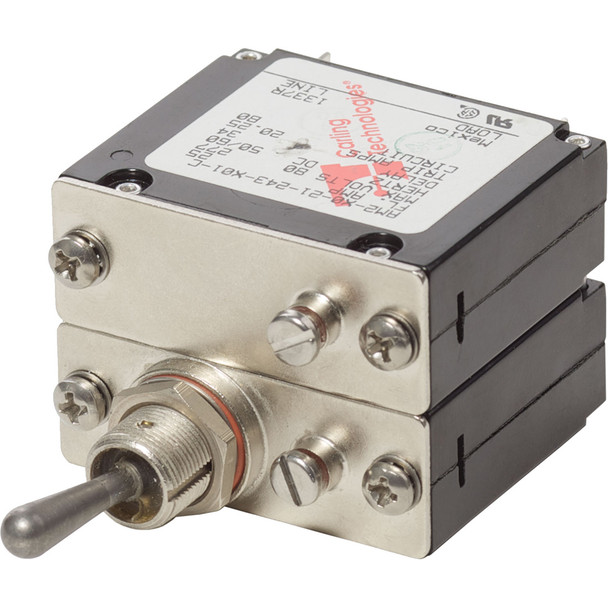

7314 COTS Military Grade A-Series 25 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 25A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40C
- Max Operating Temp: 85C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30"-lb
- Screw Terminal Torque: 14"-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
The Blue Sea Systems 7314 COTS Military Grade A-Series 25 Amp circuit breaker is designed for demanding applications that require military specifications under CFR 46. Built with a rugged metal toggle actuator and a magnetic hydraulic trip mechanism, this breaker ensures reliable protection and performance in harsh environments. Its high interrupt capacity of 1500 amps AC and 7500 amps DC makes it suitable for high-current circuits, providing peace of mind during overload or short circuit conditions. The device is engineered to operate reliably across a broad temperature range from -40°C to 85°C, making it ideal for both extreme cold and high-temperature environments. Its compact design, weighing only 0.13 pounds, allows for versatile installation in space-constrained systems without sacrificing durability or safety.
Features:
- Amperage: 25A, suitable for high-current applications
- Actuator Style: Metal toggle for durability and ease of operation
- Poles: Double-pole design for comprehensive circuit protection
- Maximum Voltage: 277V AC and 65V DC compatibility
- Circuit Breaker Type: Magnetic hydraulic trip free for reliable circuit interruption
- Interrupt Capacity: 1500A AC and 7500A DC to handle fault conditions
- Operational Temperature Range: -40°C to 85°C for versatile use
- Mounting: 1/2-32 hex nut stainless steel for secure installation
- Torque Specifications: 30 in-lb for mounting nut, 14 in-lb for screw terminals
- Switching Cycles: 6000 electrical and 4000 mechanical cycles for longevity
- Terminal Screw: #10-32 stainless steel for secure connections
- UL 1077 Listed for safety and compliance
