Description

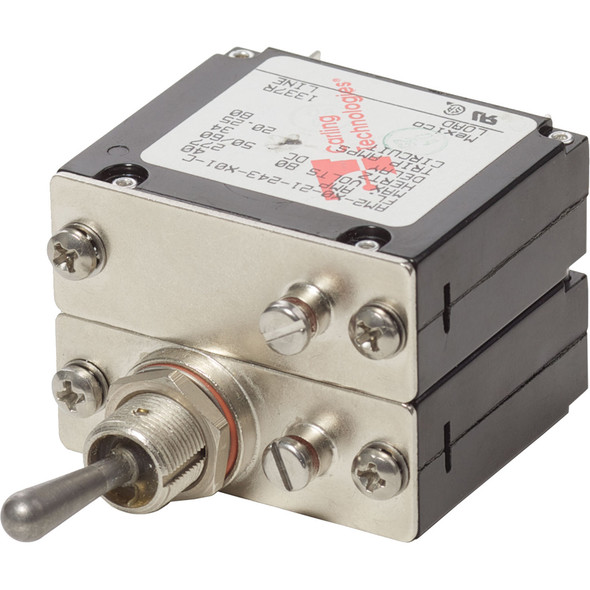

7317 COTS Military Grade A-Series 50 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 50A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40C
- Max Operating Temp: 85C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30"-lb
- Screw Terminal Torque: 14"-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
The Blue Sea Systems 7317 COTS Military Grade A-Series 50 Amp circuit breaker is designed for demanding applications where military specifications are required under CFR 46. With a high 50-amp current rating, it offers reliable overcurrent protection for a variety of electrical systems. This breaker features a robust metal toggle actuator and two poles, providing secure switching capabilities for both AC and DC circuits. It is rated for a maximum voltage of 277V AC and 65V DC, making it suitable for diverse power setups. The magnetic hydraulic trip mechanism ensures quick response and trip free operation, preventing damage during overload conditions. With an interrupt capacity of 1500 Amps AC and 7500 Amps DC, this breaker can handle significant fault currents, ensuring safety and system integrity. Designed for durability, it operates effectively within a temperature range from -40°C to 85°C, suitable for harsh environments. The mounting boss utilizes a 1/2-32 hex nut made of stainless steel, with a torque requirement of 30 inch-pounds for secure installation. Terminal screws are #10-32 stainless steel, tightened to 14 inch-pounds, ensuring solid connections. The device supports approximately 6000 electrical switching cycles and 4000 mechanical cycles, providing long-term operational reliability. Weighing only 0.13 pounds, this compact circuit breaker combines high performance with minimal space requirements, ideal for military, industrial, and marine applications requiring rugged, dependable circuit protection.
Features:
- Amperage: 50A for reliable circuit protection
- Actuator Style: Metal toggle for durability
- Poles: Dual pole configuration for comprehensive switching
- Max Voltage: 277V AC and 65V DC suitability
- Circuit Breaker Type: Magnetic hydraulic, trip free design
- Interrupt Capacity: 1500A AC and 7500A DC for high fault current handling
- Temperature Range: -40°C to 85°C for harsh environment operation
- Mounting: Stainless steel 1/2-32 hex nut with 30 inch-pound torque
- Terminal Connection: #10-32 stainless steel screws, 14 inch-pound torque
- Switching Cycles: 6000 electrical and 4000 mechanical for longevity
- UL 1077 certified for safety and compliance
- Lightweight and compact design suitable for military and industrial use
