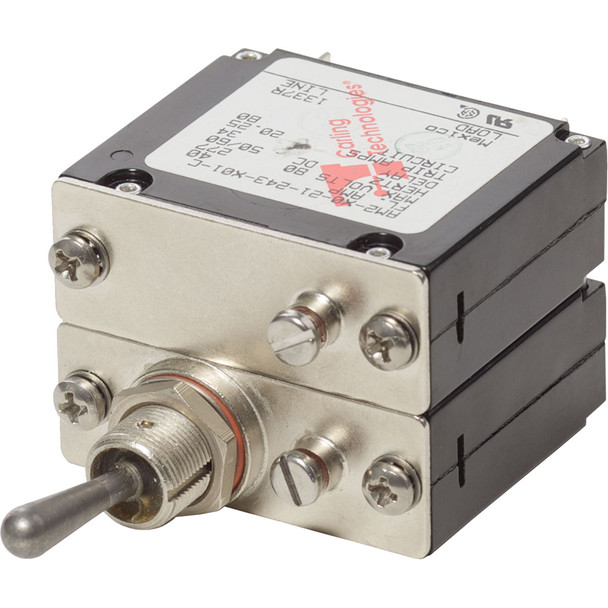

Blue Sea Systems 7316 COTS Military Grade A-Series 40 Amp Circuit Breaker

7316 COTS Military Grade A-Series 40 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

• Amperage: 40A
• Actuator Style: Metal Toggle
• Poles: 2
• Max Voltage: 277V AC, 65V DC
• Circuit Breaker Type: Magnetic Hydraulic - Trip Free
• Interrupt Capacity: 1500 A AC, 7500A DC
• Min Operating Temp: -40C
• Max Operating Temp: 85C
• Mounting Boss: 1/2-32 Hex Nut SS
• Mounting Nut Torque: 30"-lb
• Screw Terminal Torque: 14"-lb
• Switching Cycles: 6000 Electrical/4000 Mechanical
• Terminal Screw: #10-32 SS
• Weight: 0.13lb (0.06 kg)
• UL 1077

The Blue Sea Systems 7316 COTS Military Grade A-Series 40 Amp circuit breaker is engineered for demanding applications that require military-grade specifications. Designed with a metal toggle actuator and dual poles, this breaker ensures reliable performance in critical environments. It supports a maximum voltage of 277V AC and 65V DC, making it suitable for a range of electrical systems. The magnetic hydraulic trip mechanism provides trip-free operation, enabling safe interruption of power in fault conditions. With an interrupt capacity of 1500 amperes AC and 7500 amperes DC, this breaker is built to handle high-current surges and protect your equipment effectively. Its robust construction includes a 1/2-32 hex nut stainless steel mounting boss, with a torque of 30 inch-pounds, ensuring a secure installation. The terminal screws are #10-32 stainless steel, with a torque of 14 inch-pounds for optimal connection stability. Rated for 6000 switching cycles electrically and 4000 mechanically, this breaker offers longevity and dependable operation. With a temperature range from -40°C to 85°C, it performs reliably across diverse environmental conditions. UL 1077 certified, the Blue Sea 7316 is suitable for applications requiring compliance with strict safety standards. This lightweight circuit breaker is ideal for military, marine, industrial, and other demanding electrical systems where durability and reliability are paramount.

Features:

• Amperage: 40A for reliable circuit protection

• Actuator Style: Metal toggle for durability and ease of use

• Poles: 2 poles to support multi-wire systems

• Max Voltage: Supports up to 277V AC and 65V DC

• Circuit Breaker Type: Magnetic hydraulic trip-free mechanism

• Interrupt Capacity: 1500A AC and 7500A DC for high surge handling

• Operating Temperature: Range from -40°C to 85°C for versatile environments

• Mounting Hardware: 1/2-32 hex nut stainless steel with torque specifications

• Terminal Screws: #10-32 stainless steel for secure connections

• Switching Cycles: 6000 electrical and 4000 mechanical for longevity

• UL Certification: Meets UL 1077 safety standards

• Weight: Lightweight design at approximately 0.13 pounds
