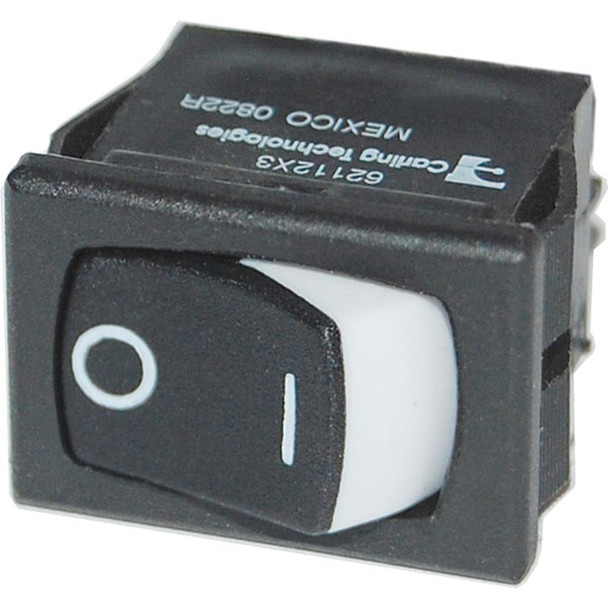

Blue Sea Systems 7481 360 Panel Rocker Switch SPST On-Off

360 Panel - Rocker Switch SPST - (ON)-OFF

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: (ON)-OFF

• Pole/Throw**: SPST

• Maximum Amperage***:12A @ 125V AC / 10A @ 12V DC / 10A @ 24V DC / 6A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7481 360 Panel Rocker Switch SPST (Single Pole Single Throw) is designed for versatile control applications within the 360 Panel System. Its open frame mounting allows for easy integration of multiple modules, making it ideal for custom electrical panels that require reliable on-off switching functionality. This switch features a 12A maximum current rating at 125V AC and 10A at 12V or 24V DC, ensuring robust performance for various power needs.

Constructed with a quick connect tab terminal, measuring approximately 0.187 inches (4.75mm), this switch is engineered for swift installation and secure connections. Its compact design, weighing just 0.08 pounds, makes it suitable for space-constrained panel setups. The switch action is momentary ON, providing a straightforward control mechanism for multiple applications.

The Blue Sea 7481 switch supports multiple configurations, including SPST, SPDT, DPST, and DPDT, offering flexibility in circuit design. This adaptability allows users to customize their panels for different functions such as battery management, source selection, or other system controls. Its durable construction and flexible mounting options make it a reliable choice for marine, automotive, and industrial environments. This switch complies with safety standards and includes a warning about chemical exposure, highlighting its adherence to environmental and safety regulations.

Designed to fit seamlessly within the comprehensive 360 Panel System, the Blue Sea Systems 7481 switch is an essential component for professionals seeking a dependable, versatile switch solution that can accommodate future upgrades and modifications in complex electrical systems.

Features:

• Action: Momentary ON (push-to-actuate) for reliable control

• Pole/Throw: Single Pole Single Throw (SPST) for simple on-off switching

• Maximum Amperage: 12A at 125V AC, 10A at 12V/24V DC for versatile power handling

• Terminal Type: Quick connect tab for fast, secure wiring

• Terminal Size: 0.187 inches (4.75mm) for compatibility with standard wiring connectors

• Open frame mounting design for easy integration within 360 Panel System

• Compact weight of 0.08 pounds makes it suitable for space-constrained panels

• Supports multiple circuit configurations including SPST, SPDT, DPST, and DPDT

• Designed for use in marine, automotive, and industrial electrical panels

• complies with safety standards and includes chemical exposure warning
