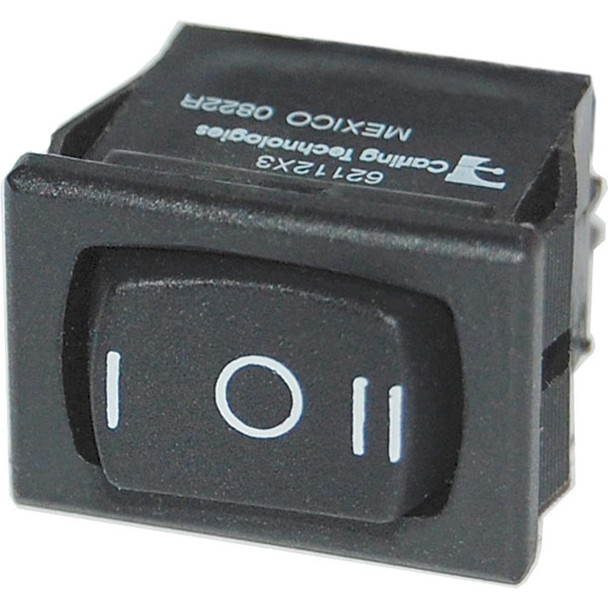

Blue Sea Systems 7482 360 Panel Rocker Switch SPDT ON-OFF-ON

360 Panel - Rocker Switch SPDT - ON-OFF-ON

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: ON-OFF-ON

• Pole/Throw**: SPDT

• Maximum Amperage***:8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7482 360 Panel System features a versatile open-frame design that allows for easy mounting of various modules, enabling users to combine multiple functions within a single panel. This innovative approach facilitates quick assembly, future modifications, and a broad range of panel features, making it ideal for applications such as battery management, source selection, and instrumentation.

Designed for use in 360 panels, this SPDT rocker switch offers a reliable ON-OFF-ON action, providing single pole/double throw functionality suitable for many electrical control scenarios. The switch's quick connect tab terminals, measuring 0.187 inches (4.75mm), ensure secure and straightforward wiring. Its maximum amperage ratings include 8A at 125V AC and 10A at 12V DC, making it capable of handling typical loads safely and efficiently.

Constructed to support a broad range of functions, the switch's robust design and modular compatibility allow for seamless integration into gauges, push buttons, and battery management modules within the 360 Panel System. Its lightweight construction, weighing only 0.08 lbs (0.04 kg), contributes to overall system efficiency without sacrificing durability. This switch is a practical choice for both new installations and system upgrades, offering flexibility and dependability in demanding environments.

Features:

• Action: ON-OFF-ON for versatile switching control

• Pole/Throw: SPDT (Single Pole Double Throw) for multiple circuit configurations

• Maximum Amperage: 8A at 125V AC, 10A at 12V DC, 8A at 24V DC, 8A at 250V AC for reliable performance

• Terminal Type: Quick Connect Tab for easy wiring

• Terminal Size: 0.187 inches (4.75mm) for secure connections

• Compatible with Blue Sea Systems 360 Panel Modules for flexible electrical system design
