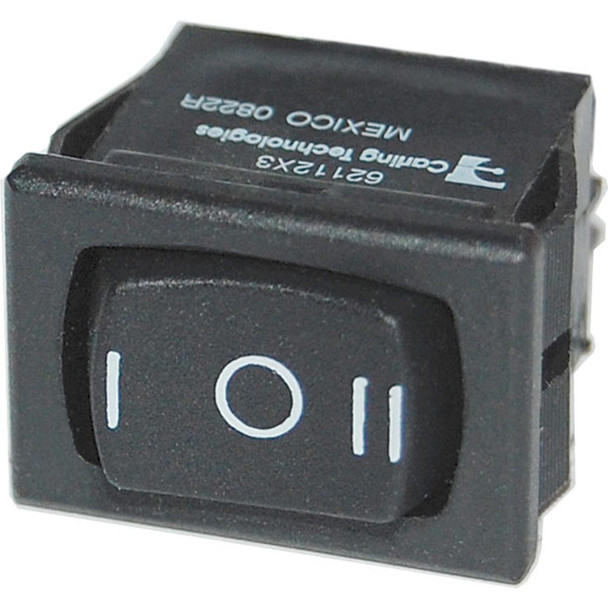

Blue Sea Systems 7483 360 Panel Rocker Switch SPDT ON-OFF-(ON)

360 Panel - Rocker Switch SPDT - ON-OFF-(ON)

The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.

This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.

For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management

Specifications:

• Action*: ON-OFF-(ON)

• Pole/Throw**: SPDT

• Maximum Amperage***:8A @ 125V AC / 10A @ 12V DC / 8A @ 24V DC / 8A @ 250V AC

• Terminal Type: Quick Connect Tab

• Terminal Size: 0.187" (4.75mm)

• Weight:0.08lb (0.04kg)

*Action () = Momentary ON

**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw

***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7483 360 Panel Rocker Switch offers a versatile and reliable solution for integrating multiple functions within your electrical system. Designed for use in 360 panels, this SPDT (Single Pole Double Throw) switch provides an efficient way to control power sources with ease. Its open frame mounting system allows for quick installation and future modifications, making it ideal for applications requiring flexibility and expansion. The switch's broad compatibility includes modules like gauges, DC push buttons, switches, and battery management units, ensuring seamless integration across various components. Built with durable quick connect tabs and a compact profile, this switch can handle up to 8 amps at 125V AC and 10 amps at 12V DC, making it suitable for a range of demanding environments. The robust construction ensures reliable operation, while the compact weight enhances ease of installation and maintenance. Whether used in marine, RV, or industrial systems, the Blue Sea Systems 7483 switch provides the control you need with the longevity you demand. Its thoughtful design and high-quality materials ensure consistent performance, making it a dependable choice for your electrical panel needs. The switch's action is ON-OFF-(ON), allowing for momentary or sustained switching depending on your application's requirements. Overall, this switch combines flexibility, durability, and ease of use to deliver a superior control solution for complex electrical systems.

Features:

• Action: ON-OFF-(ON) for versatile switching

• Pole/Throw: SPDT (Single Pole Double Throw) for multiple circuit control

• Maximum Amperage: 8A at 125V AC / 10A at 12V DC / 8A at 24V DC / 8A at 250V AC for reliable performance

• Terminal Type: Quick Connect Tab for simple installation

• Terminal Size: 0.187 inches (4.75mm) for secure connections

• Designed for use in 360 panels with open frame mounting system

• Compatible with gauges, DC push buttons, switches, and battery management modules

• Compact and lightweight design for easy integration
