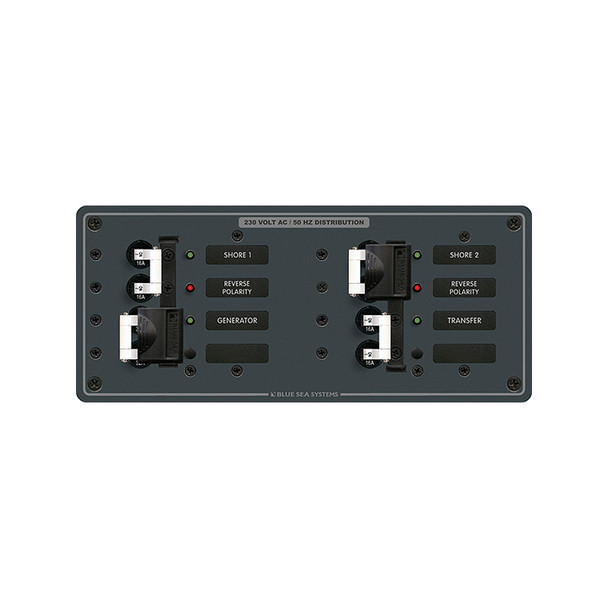

Blue Sea Systems 8598 AC Toggle Source Selector for 230V Systems

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

• For 230V AC Systems

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8598 AC Toggle Source Selector is designed for reliable switching between multiple AC power sources in 230V systems. Crafted from heavy-duty 1/8-inch thick aluminum alloy with a durable polyurethane slate gray finish, this panel offers longevity and resistance to corrosion. Its industry-standard dimensions and fully pre-wired design facilitate straightforward installation in various electrical enclosures, making it suitable for industrial, commercial, or marine applications.

The panel features double pole AC main circuit breakers with an integrated lockout slide, preventing simultaneous connection of two sources and enhancing safety. It includes three 16A double pole circuit breakers and one 32A double pole circuit breaker, all equipped with
