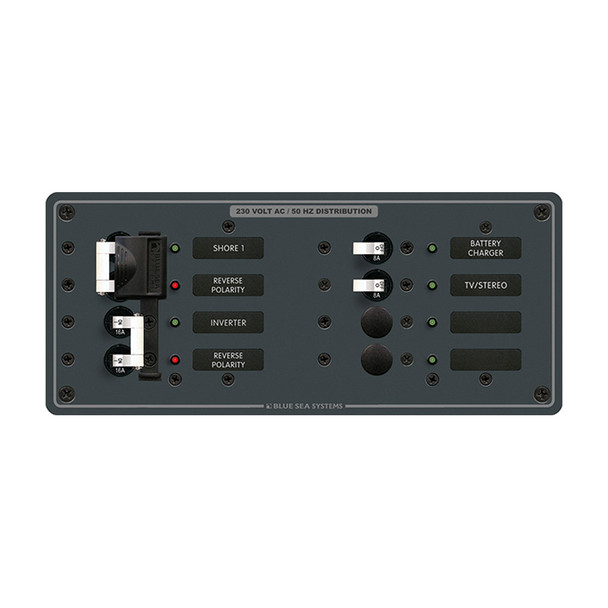

Blue Sea Systems 8599 AC Toggle Source Selector for 230V Systems - 2 Sources, 4 Positions

• Double pole AC main circuit breakers with installed lockout slide

• Prevents connecting both AC sources simultaneously

• Maximum panel amperage - 50 Amperes

• Red reverse polarity indicating LED

• All hot, neutral and safety ground buses installed, fully pre-wired

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

• For 230V AC Systems

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 8599 AC Toggle Source Selector is a reliable and professionally engineered switch designed for seamless management of dual AC power sources in 230V systems. Crafted from heavy-duty 1/8" aluminum alloy with a durable polyurethane slate gray finish, this selector provides longevity and corrosion resistance in demanding environments. Its industry-standard dimensions ensure compatibility with a wide range of panels, making it ideal for marine, RV, or industrial applications. The unit features two double pole 16A circuit breakers with lockout slides, preventing accidental connection of both sources simultaneously, thus enhancing safety and system integrity. Additionally, two 8A single pole breakers are included for auxiliary circuits. All hot, neutral, and safety ground buses are pre-wired, simplifying installation. The selector is equipped with all circuit label positions backlit for easy identification, and

Features:

• Double pole AC main circuit breakers with lockout slide to prevent simultaneous source connection

• Maximum panel amperage of 50 Amperes for reliable power management

• Red reverse polarity indicating LED for safety monitoring

• All hot, neutral, and safety ground buses are fully pre-wired for quick installation

• Backlit circuit label positions on standard panels requiring no additional kits
