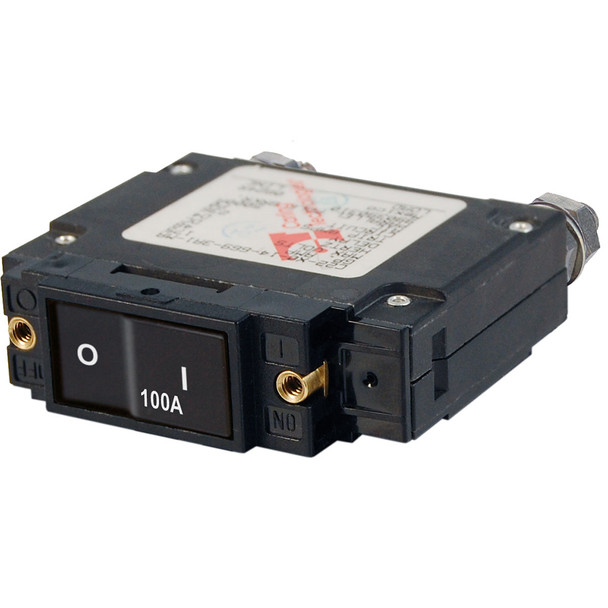

Blue Sea Systems C-Series Flat Rocker Circuit Breaker - Single Pole 100A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching

• Color actuator indicates "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Combines switching and circuit protection into a single device

• "Trip Free" - cannot be held closed after trip

• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 100A AC / 100A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Maximum Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Minimum Operating Temperature: -40 C

• Maximum Operating Temperature: 85 C

• Mounting Screw: #6-32 Stainless Steel

• Mounting Screw Torque: 6 in-lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4-20 Tin-Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems C-Series Flat Rocker Circuit Breaker (Part Number 7549) offers reliable overcurrent protection for marine applications, including inverters, bow thrusters, and windlasses. Designed with a flush-mounted rocker actuator, it ensures the switch remains securely in the "ON" position, reducing accidental switching. The clear color indicator effectively shows when the breaker is in the "OFF" position, providing easy status recognition. Combining switching and circuit protection into a single compact device, this breaker simplifies wiring and enhances safety on gasoline-powered boats. Its magnetic hydraulic trip-free mechanism ensures the breaker cannot be held closed after tripping, preventing potential electrical hazards and ensuring safety during fault conditions. The breaker is ignition protected, making it suitable for installation in marine environments where safety and compliance are critical. Its robust design includes a terminal stud torque of 35 in-lb and a switching cycle capacity of 10,000 cycles, ensuring long-lasting performance. The breaker is rated for a maximum voltage of 240V AC and 48V DC, with interrupt capacities of 3000A at 120V AC, 3500A at 240V AC, and 5000A at 32V DC, providing ample protection against electrical faults. Its compact size and stainless steel mounting screw make installation straightforward, with a minimum operating temperature of -40°C and a maximum of 85°C, suitable for a variety of marine weather conditions. This breaker weighs approximately 0.38 pounds, making it a lightweight yet durable component for your electrical system.

Note: This product may contain chemicals known to cause reproductive harm under California law. For more information, visit P65Warnings.ca.gov.

Features:

• Rocker actuator is flush in the "ON" position, reducing accidental switching

• Color indicator clearly shows "OFF" position

• Provides overcurrent protection for inverters, bow thrusters, and windlasses

• Integrates switching and circuit protection into one device for simplicity

• "Trip Free" design prevents holding the breaker closed after trip

• Ignition protected for safe installation aboard gasoline-powered boats

• Magnetic hydraulic trip mechanism ensures reliable fault clearance

• Rated for 240V AC and 48V DC with high interrupt capacities

• Durable design with 10,000 switching cycles for long-term use

• Compact size with stainless steel mounting hardware for easy installation
