Description

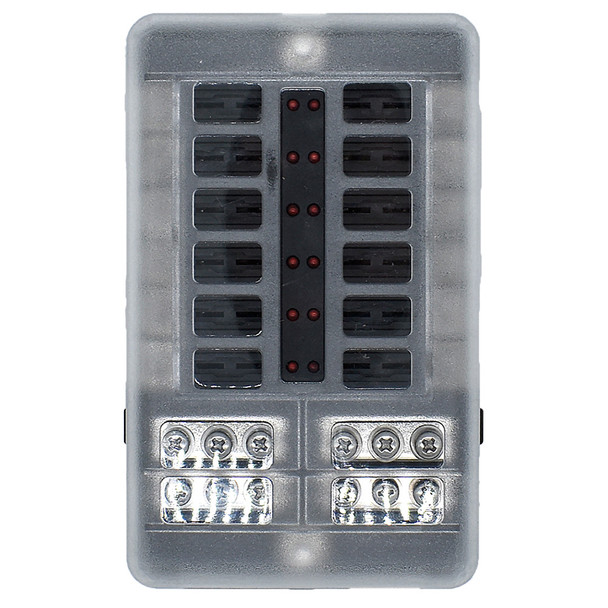

12 Position Fuse Block with LEDs
This 12-position led fuse block is built to simplify circuit protection and troubleshooting in 48V DC systems. Each circuit supports up to 30A, and an integrated LED indicator alerts you the moment a fuse blowsso you can identify and address issues at a glance.
Designed for clean, centralized wiring in marine or mobile environments, this led fuse block handles up to 100A of input current through M5 threaded studs, with M4 output studs rated for 25A max per circuit. Its compatible with 88 Series breakers.
The housing is made from stainless steel, nickel-plated copper, and polycarbonate, ensuring long-term durability and corrosion resistance. Mounting is simple with 0.1695 holes, spaced 4.725 H x 2.725 W for the 12-position block.
Whether youre upgrading or building new, this LED fuse block delivers a clean, professional, and easy-to-maintain solution.
Specifications:
- Max Voltage: 48V DC
- Input Current: 100A
- Breaker Type: 88 Series/BW 38 Series
- Input Terminal Rating: M5 Threaded Studs (100A max)
- Output Terminal Rating: M4 Threaded Studs (25A max)
- Material: Stainless Steel/Nickel-plated Copper/Polycarbonate
The Bluewater Part Number 3200-0001-012 is a high-quality 12-position fuse block designed to streamline circuit protection and troubleshooting in 48V DC systems. Featuring integrated LED indicators, this fuse block allows for instant identification of blown fuses, minimizing downtime and simplifying maintenance. Its robust construction and comprehensive specifications make it an ideal choice for marine, RV, or other mobile applications where reliable electrical management is essential. The fuse block supports up to 30A per circuit and handles a total input current of up to 100A, ensuring safe and efficient power distribution. Its design includes M5 threaded studs for input connections rated at 100A and M4 output studs rated for 25A per circuit, compatible with 88 Series breakers for added versatility. The housing is crafted from stainless steel, nickel-plated copper, and polycarbonate, providing excellent durability, corrosion resistance, and long-term service life. Mounting is straightforward with pre-drilled holes spaced for easy installation in tight or complex wiring environments. Whether upgrading existing systems or installing new setups, this fuse block delivers a professional, organized, and maintenance-friendly solution for power management in demanding settings. Its rugged materials and thoughtful design make it suitable for both stationary and mobile applications where safety, reliability, and ease of use are paramount.
Features:
- Supports up to 30A per circuit with a total input capacity of 100A
- Integrated LED indicators alert when a fuse blows for quick troubleshooting
- Compatible with 88 Series and BW 38 Series circuit breakers
- Heavy-duty housing made from stainless steel, nickel-plated copper, and polycarbonate for durability and corrosion resistance
- Easy mounting with pre-drilled holes spaced for secure installation in various environments
