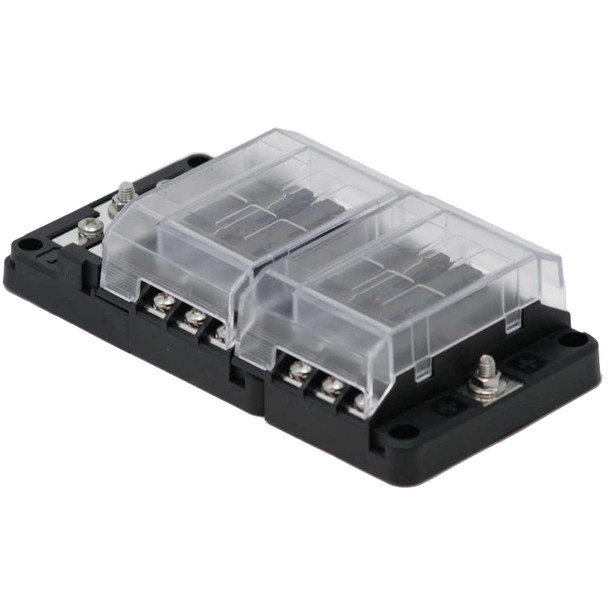

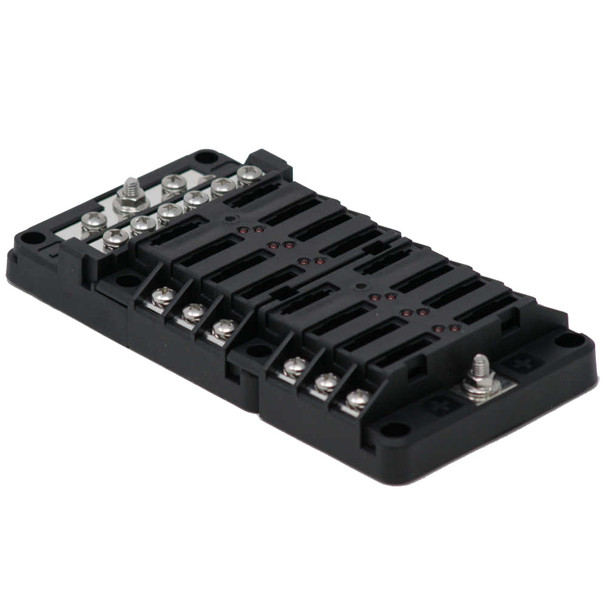

Egis Mobile Electric RT Fuse Block 12 Position with Ground and LED Indication

RT Fuse Block 12 Position with Ground LED Indication

This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 10
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 12
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Ground Block Included

Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.

Ground Block Separates

The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric RT Fuse Block Part Number 8026 offers a robust and flexible solution for electrical circuit protection in demanding environments. Designed with a modular architecture, this fuse block can be configured into seven unique setups using compatible Egis modules 8028 and 8030, streamlining inventory management and installation. It features a 12-position fuse capacity accommodating ATO, ATC, or ATF fuses from 1 to 40 amps, ensuring compatibility across various circuit protection needs. The fuse block supports a maximum current of 10 amps for the entire unit and up to 30 amps per circuit, making it suitable for high-current applications while maintaining safety standards. Its design emphasizes durability, employing high-temperature resistant materials and stainless steel hardware that is corrosion-resistant, allowing for versatile mounting options on vehicles or equipment. The inclusion of a ground return block with multi-level low amp terminal screws enhances grounding flexibility and simplifies wiring layouts. LED indicators for each fuse position provide immediate visual fault detection, facilitating quick troubleshooting and reducing downtime. The fuse block's cover and label recesses protect terminal connections from accidental shorts and environmental contaminants, contributing to long-term reliability. Optional weather-proof labeling and stainless steel hardware make this fuse block ideal for harsh environments, including off-road or industrial settings. Overall, the Egis RT Fuse Block delivers a combination of durability, flexibility, and ease of diagnostics, making it a reliable choice for complex electrical systems in vehicles and machinery.

Features:

• Modular design with seven configurable setups for versatile application needs

• Accepts ATO, ATC, and ATF fuses from 1 to 40 amps for comprehensive circuit protection

• High-temperature and corrosion-resistant construction with stainless steel hardware for durability

• Supports SAE standards for thermal and short circuit protection

• LED fuse diagnostics provide real-time fault indication for easier troubleshooting

• Includes a 12-position ground return block with multi-level terminal screws for flexible grounding

• Optional weather-proof labels and cover protect against environmental elements

• Spare fuse locations allow testing and maintenance without disrupting main circuits

• Supports wire sizes up to #10 AWG and voltage range of 0-36 VDC

• Cover and label recesses prevent accidental shorts and protect terminal connections
