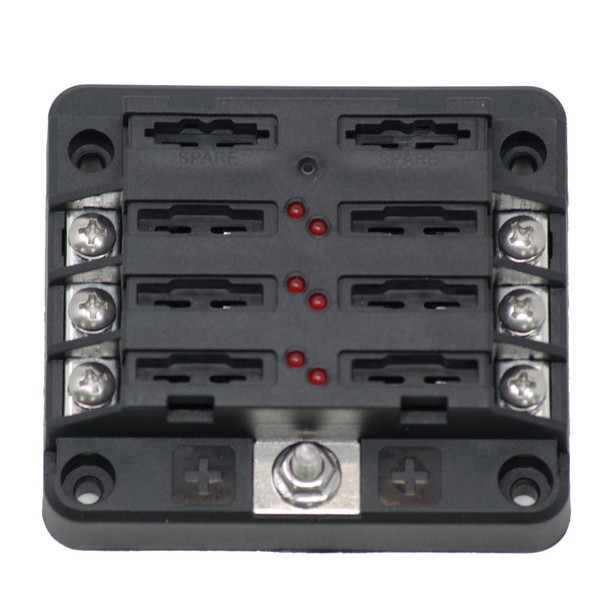

Egis Mobile Electric RT Fuse Block 6 Position with LED Indication – Reliable Circuit Protection for Vehicles

RT Fuse Block 6 Position with LED Indication

This 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 0-36
• Number of Fuse Positions: 6
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

The Egis Mobile Electric RT Fuse Block 6 Position with LED Indication is a versatile and durable solution designed for automotive and harsh environment applications. Featuring a modular design, this fuse block can be configured into seven unique setups using Egis 8028 and 8030 components, reducing the need for multiple part numbers and streamlining inventory management. Its robust construction includes high-temperature materials and stainless steel self-locking hardware, allowing installation in any location on your vehicle without concern for corrosion or mechanical failure. The fuse block accepts ATO style fuses ranging from 1 to 40 amps, providing reliable protection for branch circuits while supporting SAE standards for thermal and short circuit events. Its maximum current capacity of 100 amps for the entire block and 30 amps per circuit ensures safe operation across a variety of electrical systems.

The fuse block includes LED indicators for each circuit, enabling quick identification of blown fuses and facilitating remote troubleshooting. This feature significantly reduces downtime and maintenance effort by providing clear, visual fault detection. Additionally, the two spare fuse locations per six circuits allow for testing or backup fuses, further enhancing system reliability. The design also incorporates cover and label recesses to protect terminal studs and cable edges from accidental shorts, ensuring safety and durability. Whether used in trucks, off-road vehicles, or other demanding environments, the Egis RT Fuse Block offers a combination of modular flexibility, rugged construction, and advanced diagnostics to maintain optimal electrical system performance.

Features:

• Modular design with seven configuration options for versatile installation

• High-temperature materials and stainless steel hardware for durability in harsh environments

• Accepts ATO/ATC/ATF fuses from 1 to 40 amps for comprehensive circuit protection

• Supports SAE standards for thermal and short circuit protection

• LED indicators for each circuit for easy fuse status monitoring

• Two spare fuse/test resistor locations per six circuits for added flexibility

• Protective cover and label recesses shield terminals from accidental shorts

• Maximum current capacity of 100 amps for the entire block and 30 amps per circuit

• Supports wire sizes up to #10 AWG for wiring flexibility

• Weather-resistant and corrosion-resistant design suitable for vehicle applications
