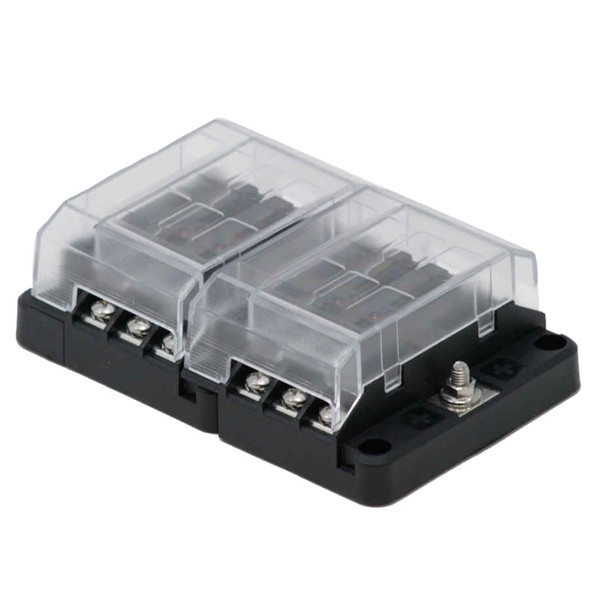

Egis Mobile Electric RT Fuse Block 12 Position with LED Indication for Vehicle Applications

RT Fuse Block 12 Position with LED Indication

This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.

Applications:

• Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
• Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

• Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
• Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
• Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

• Maximum Current (Entire Block) Amps: 100
• Maximum Current (Per Circuit) Amps: 30
• Max Output Wire Size: #10 AWG
• Voltage Range VDC: 12-24
• Number of Fuse Positions: 12
• Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

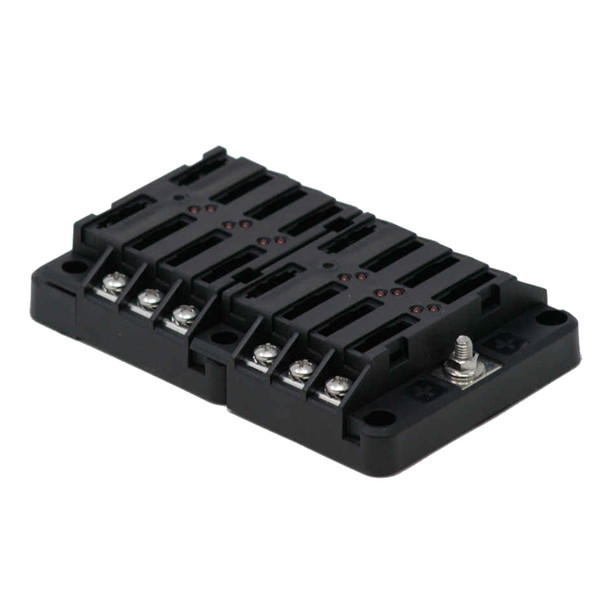

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric RT Fuse Block Part Number 8029 offers a versatile and durable solution for managing multiple electrical circuits in vehicles and harsh environments. Designed with a modular architecture, this 12-position fuse block can be configured into seven unique setups using compatible Egis components, simplifying inventory and installation for a variety of build requirements. Its robust construction includes high-temperature resistant materials and stainless steel self-locking hardware, allowing reliable mounting anywhere on a vehicle without concern for corrosion or vibration damage. The fuse block accepts ATO style fuses ranging from 1 to 40 amps, providing comprehensive circuit protection in line with SAE standards for thermal and short circuit events. It supports a maximum current capacity of 100 amps for the entire block and up to 30 amps per circuit, ensuring safe and efficient electrical operation. With a voltage range of 12 to 24 VDC, this fuse block is suitable for most automotive and utility applications. The design incorporates LED indicators for each circuit, enabling quick identification of blown fuses and facilitating remote troubleshooting. This feature enhances system maintenance by reducing downtime and simplifying fault diagnostics. Additional features include spare fuse locations for testing resistors, protective cover and label recesses to prevent accidental shorts, and weather-resistant hardware options for use in demanding environments. The fuse block’s maximum output wire size is #10 AWG, accommodating a wide range of wiring configurations. Overall, the Egis RT Fuse Block 12 Position with LED indication is an essential component for reliable electrical system management in vehicles, offering flexibility, durability, and ease of maintenance for professional installers and technicians.

Features:

• Modular design allows seven unique configurations for flexible installation

• Durable construction with high-temperature materials and stainless steel hardware for harsh environments

• Accepts ATO, ATC, and ATF fuses from 1 to 40 amps for comprehensive circuit protection

• Supports SAE standards for thermal and short circuit protection

• LED fuse indicators for each circuit enable quick fault diagnosis and remote troubleshooting

• Spare fuse locations per six circuits facilitate testing and system evaluation

• Protective covers and label recesses prevent accidental shorts and enhance safety

• Weather-proof hardware options available for demanding environments

• Maximum current capacity of 100 amps for the entire block and 30 amps per circuit

• Supports wire sizes up to #10 AWG for versatile wiring connections
