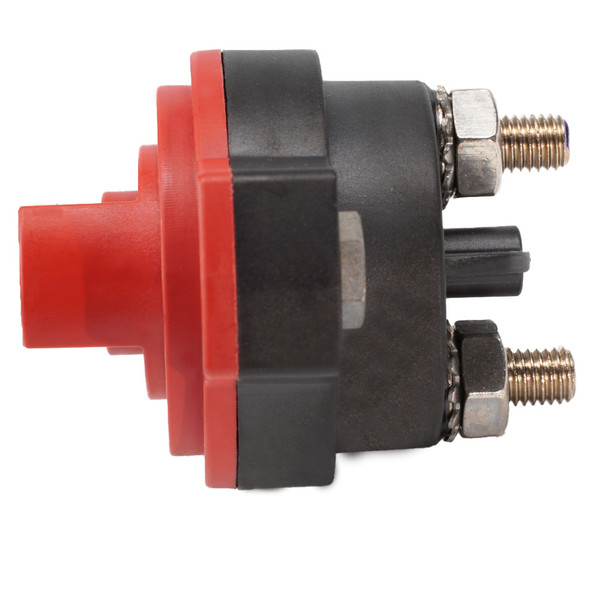

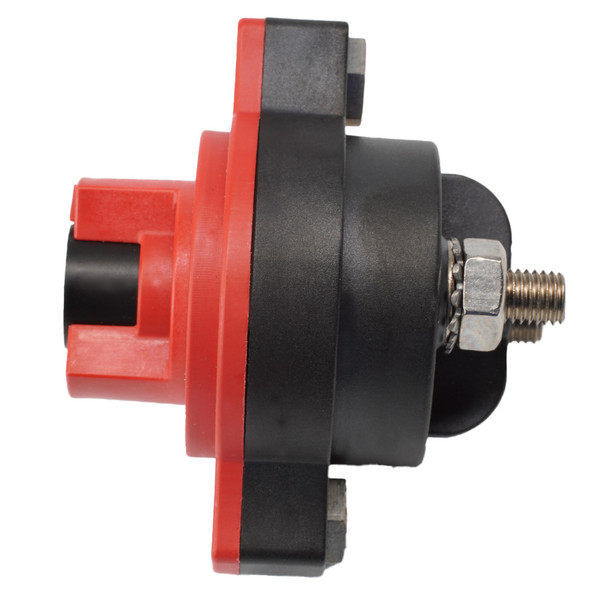

20A Panel Mount Mini Circuit Breaker
This 20A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.
Applications:
- Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
- Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
- High electrical and manual switching endurance delivers 2,000 cycles at full current
- High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-year warranty - Egis stands behind its product's ability to meet the user's needs
Specifications:
- Continuous Current Amps: 20
- Max Voltage: 42
- CE Marked: Yes
- Interrupt Current @14 VDC (Amps): 3,000
- Cycle Switching Endurance: 5,000
- Ingress Protection Rating: IP66
Focal Features
Easy ON/OFF Rotary Switch
Easy to operate and visually recognize switch position.
Stainless Steel Self- Locking Hardware
Corrosion and vibration resistance for harsh environment applications.
Weatherproof Construction
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Compact Size
Fit more circuit switching/protection on a smaller panel!

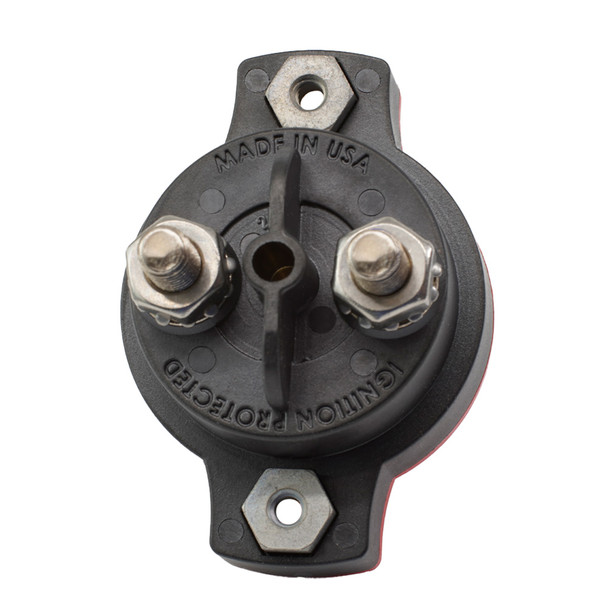

Proudly Made in the USA
Made in the USA of high-quality components.
Ignition Protected
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric 20A Panel Mount Mini Circuit Breaker is a versatile dual-function device designed for reliable circuit protection and manual switching. Its compact design makes it ideal for trolling motor applications, providing a seamless combination of circuit breaker and disconnect switch functionalities in a single unit. This product is engineered to safeguard electrical circuits from short circuits and over-current conditions, preventing wire insulation damage and potential system failures. Its corrosion-resistant stainless steel hardware and weatherproof construction ensure durability in harsh environments, making it suitable for a wide range of marine, RV, or industrial uses.
Built with an IP66 sealing rating, the Egis 20A Circuit Breaker is protected against dust and water intrusion, ensuring long-term reliability. The device supports a maximum voltage of 42V DC, compatible with 12V, 24V, and 36V systems, and features a high interrupt current capacity, enabling safe operation with large battery banks. The easy-to-operate rotary switch offers clear visual indication of switch position, simplifying operation and maintenance. Designed for high endurance, this breaker can withstand up to 2,000 cycles at full current, providing longevity and dependable performance over time.
The unit’s compact size allows for more flexible installation options, fitting more circuit switching and protection components within limited space. It is CE marked for safety and quality standards and includes a 4-year warranty from Egis Mobile Electric, reflecting confidence in its durability and performance. The breaker is ignition protected, preventing accidental shorts from positive terminals to grounded surfaces, and is made in the USA from high-quality components. Whether used for marine, RV, or other electrical systems, this breaker offers a reliable, weatherproof solution for circuit management and protection.
Features:
- IP66 sealed against dust and water intrusion for reliable protection
- Supports 42V DC applications, ideal for trolling motor switching
- High electrical and manual switching endurance with 2,000-cycle capability
- High interrupt current capacity for large battery banks
- Easy-to-operate rotary ON/OFF switch with visual position indicator
- Corrosion and vibration resistant stainless steel hardware
- Weatherproof construction suitable for harsh environments
- Compact size for efficient panel mounting
- Ignition protected to prevent shorts from positive terminals
- Made in the USA with high-quality components
- Includes a 4-year warranty for added peace of mind
