Description

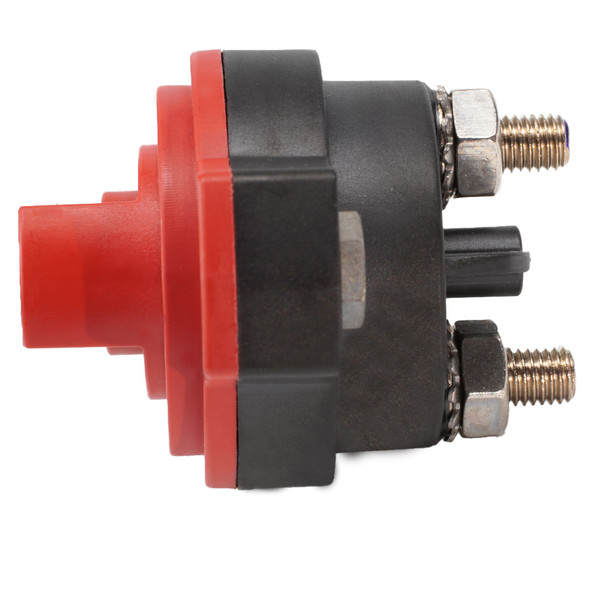

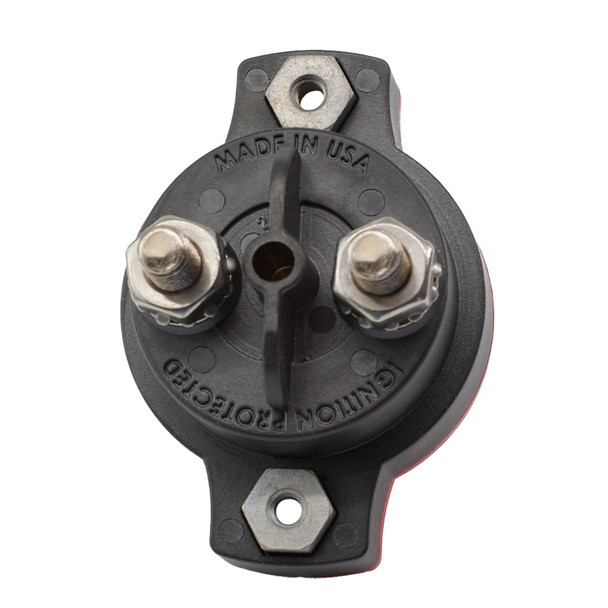

30A Panel Mount Mini Circuit Breaker
This 30A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.
Applications:
- Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
- Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
- High electrical and manual switching endurance delivers 2,000 cycles at full current
- High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-year warranty - Egis stands behind its product's ability to meet the user's needs
Specifications:
- Continuous Current Amps: 30
- Max Voltage: 42
- CE Marked: Yes
- Interrupt Current @14 VDC (Amps): 3,000
- Cycle Switching Endurance: 4,000
- Ingress Protection Rating: IP66
Focal Features
Easy ON/OFF Rotary Switch
Easy to operate and visually recognize switch position.
Stainless Steel Self- Locking Hardware
Corrosion and vibration resistance for harsh environment applications.
Weatherproof Construction
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Compact Size
Fit more circuit switching/protection on a smaller panel!
Proudly Made in the USA
Made in the USA of high-quality components.
Ignition Protected
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric 30A Panel Mount Mini Circuit Breaker (Part Number: 4701-30) offers a reliable solution for circuit protection and manual switching in various electrical systems. Designed to support 12, 24, and 36V DC applications, this breaker is ideal for trolling motor switching and other marine or automotive electrical setups. Its dual functionality as a circuit breaker and disconnect switch simplifies wiring and maintenance while ensuring the safety of your electrical system.
Constructed with durability in mind, this breaker features an IP66 sealed enclosure, providing excellent protection against dust and water intrusion for long-term reliability. The high current interrupt capability safely manages large battery banks, preventing damage caused by short circuits or over-current conditions. The breaker’s high cycle endurance of up to 4,000 switching cycles at full current makes it well-suited for frequent use in demanding environments.
Designed with user convenience in mind, the Egis 30A breaker features an easy-to-operate rotary switch for quick ON/OFF control and a stainless steel self-locking hardware that resists corrosion and vibration. Its compact size allows for more efficient panel arrangements, making it an excellent choice for tight spaces. The weatherproof construction ensures performance across diverse conditions, and the device is ignition protected, reducing the risk of accidental shorts near positive terminals.
Proudly manufactured in the USA using high-quality components, the Egis 30A Panel Mount Mini Circuit Breaker is backed by a 4-year warranty. Whether used for trolling motors, battery systems, or other electrical applications, this breaker combines robust protection with user-friendly features, ensuring safety and reliability in your electrical setup.
Features:
- Easy ON/OFF rotary switch for quick and clear operation
- Stainless steel self-locking hardware for corrosion and vibration resistance
- Weatherproof design sealed to IP66 standards against dust and moisture
- Compact size allows for efficient panel installation
- Supports 12V, 24V, and 36V DC systems, rated at 42Vdc
- High electrical and manual switching endurance of 2,000 cycles at full current
- High interrupt current capability for large battery banks
- Ignition protected to prevent shorts near positive terminals
- Made in the USA with high-quality components
- Backed by a 4-year warranty
