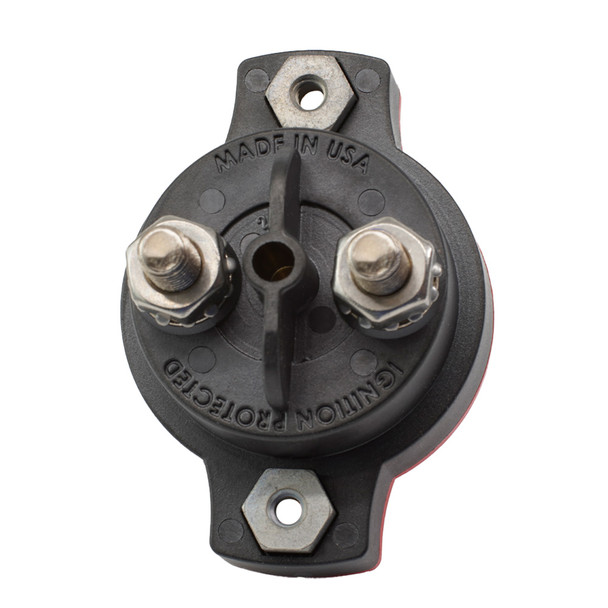

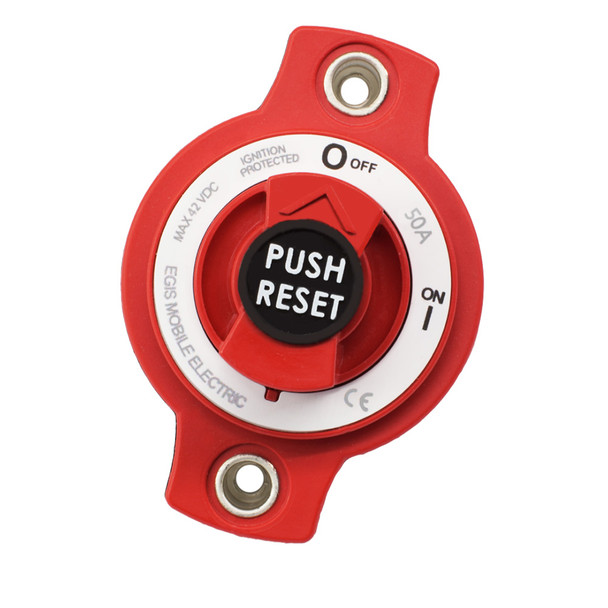

50A Panel Mount Mini Circuit Breaker
This 50A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.
Applications:
- Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
- Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
- High electrical and manual switching endurance delivers 2,000 cycles at full current
- High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-year warranty - Egis stands behind its product's ability to meet the user's needs
Specifications:
- Continuous Current Amps: 50
- Max Voltage: 42
- CE Marked: Yes
- Interrupt Current @14 VDC (Amps): 3,000
- Cycle Switching Endurance: 3,000
- Ingress Protection Rating: IP66
Focal Features
Easy ON/OFF Rotary Switch
Easy to operate and visually recognize switch position.
Stainless Steel Self- Locking Hardware
Corrosion and vibration resistance for harsh environment applications.
Weatherproof Construction
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Compact Size
Fit more circuit switching/protection on a smaller panel!
Proudly Made in the USA
Made in the USA of high-quality components.
Ignition Protected
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric 50A Panel Mount Mini Circuit Breaker offers a reliable solution for protecting electrical circuits in marine and vehicle applications. Designed as a dual-function device, it combines a circuit breaker with a manual disconnect switch, making it ideal for trolling motor switching and other DC circuit management tasks. Its compact design allows for easy installation in tight spaces, providing both automatic circuit protection and manual control in a single, efficient unit. The breaker effectively prevents damage caused by short circuits and over-current loads, safeguarding wiring and connected devices from overheating and failure. Its high interrupt capacity ensures safe operation even with large battery banks and significant power loads, making it suitable for demanding marine and RV environments.
Features:
- IP66 sealed against dust and water intrusion for reliable operation in harsh conditions
- 42 Vdc rated, supporting 12V, 24V, and 36V DC applications, perfect for trolling motor switching
- High electrical and manual switching endurance with 2,000 cycles at full current
- High interrupt current capacity to protect circuits connected to large battery banks
- Corrosion and vibration-resistant stainless steel self-locking hardware for durability
- Weatherproof construction with high-temperature ratings for versatile installation environments
- Easy operation with a rotary ON/OFF switch for quick and clear control
- Compact size to maximize circuit switching and protection on smaller panels
- Made in the USA with high-quality components ensuring longevity and performance
- Ignition protected to prevent inadvertent shorts from positive terminals to grounded surfaces
