Description

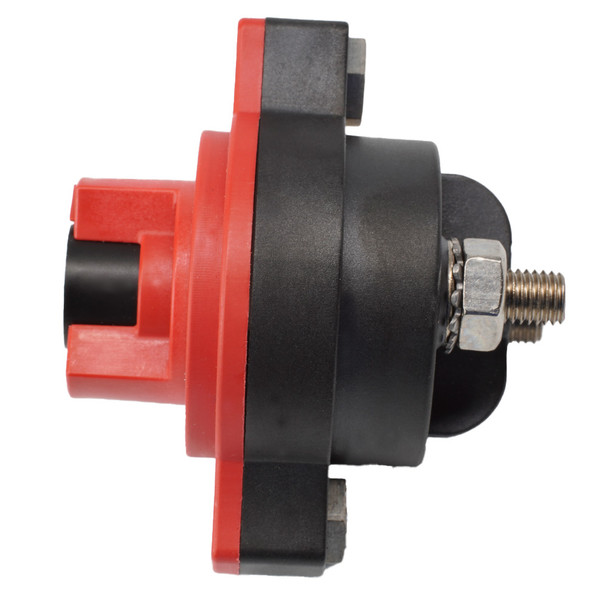

40A Panel Mount Mini Circuit Breaker
This 40A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.
Applications:
- Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction
- Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution
- Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location
Features:
- IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
- 42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications
- High electrical and manual switching endurance delivers 2,000 cycles at full current
- High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power
- 4-year warranty - Egis stands behind its product's ability to meet the user's needs
Specifications:
- Continuous Current Amps: 40
- Max Voltage: 42
- CE Marked: Yes
- Interrupt Current @14 VDC (Amps): 3,000
- Cycle Switching Endurance: 4,000
- Ingress Protection Rating: IP66
Focal Features
Easy ON/OFF Rotary Switch
Easy to operate and visually recognize switch position.
Stainless Steel Self- Locking Hardware
Corrosion and vibration resistance for harsh environment applications.
Weatherproof Construction
Sealed against dust and moisture penetration. High temp rated for all installation locations.
Compact Size
Fit more circuit switching/protection on a smaller panel!
Proudly Made in the USA
Made in the USA of high-quality components.
Ignition Protected
Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric 4701-40 is a versatile 40A panel mount mini circuit breaker designed for reliable electrical protection and circuit switching in marine and outdoor environments. This compact device combines traditional battery disconnect functionality with circuit protection, making it ideal for trolling motor switching applications and other DC systems. Its dual functionality allows users to manually switch circuits on or off while automatically protecting against short circuits and overcurrent events, preventing wire insulation damage and potential system failures. The integrated design facilitates easy circuit isolation and maintenance, enabling installation next to batteries regardless of space constraints, and simplifying wiring configurations for improved system management.
Constructed with durability in mind, the Egis 4701-40 features an IP66 rated seal that guards against dust and water ingress, ensuring long-term performance even in harsh conditions. Its high voltage rating of 42 VDC supports a wide range of applications including 12V, 24V, and 36V systems, making it suitable for various marine and RV setups. The high switch endurance of 2,000 cycles at full current ensures longevity in frequent operation scenarios, while its impressive interrupt current capacity of 3,000 amps provides robust protection for large battery banks and high-power loads. Backed by a 4-year warranty, this circuit breaker exemplifies quality and reliability from a reputable American manufacturer.
Additional features include an easy-to-operate rotary switch with clear visual positioning, stainless steel self-locking hardware resistant to corrosion and vibration, and weatherproof construction designed for all installation environments. Its compact size allows for more circuit protection components in limited space, enabling efficient wiring arrangements. The Egis 4701-40 is ignition protected, safeguarding against accidental shorts from positive terminals to grounded components, and is made with high-quality materials domestically in the USA. Whether used for trolling motors, battery management, or other DC circuit applications, this circuit breaker provides trusted performance and peace of mind in demanding conditions.
Features:
- Easy ON/OFF rotary switch for simple operation and visual confirmation of circuit status
- Stainless steel self-locking hardware resistant to corrosion and vibration
- Weatherproof IP66 sealed construction protects against dust and water ingress
- Compact size allows for multiple circuit protections in limited panel space
- Supports 12V, 24V, and 36V DC systems with a 42 VDC rating
- High electrical endurance: 2,000 cycles at full current
- High interrupt capacity of 3,000 amps for large battery banks and high-power loads
- Automatic circuit protection combined with manual switching for versatile control
- Made in the USA with high-quality components
- Ignition protected to prevent shorts from positive terminals to grounded surfaces
