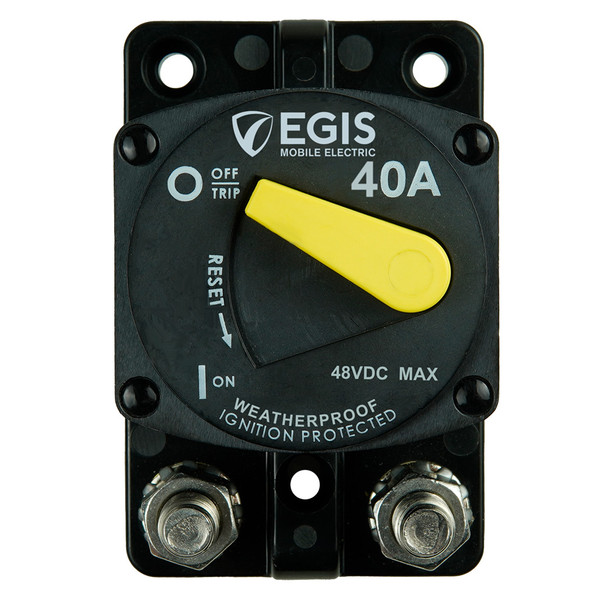

Egis Mobile Electric 40A Surface Mount 87 Series Circuit Breaker with IP66 Sealed Protection

40A Surface Mount 87 Series Circuit Breaker

This 40A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.

Applications:

• Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution
• Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location

Features:

• IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation
• High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC
• High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
• High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs

Specifications:

• Continuous Current Amps: 40
• Max Voltage: 48
• Cycling Endurance: 2,000
• Interrupt Current @14 VDC (Amps): 5,000
• Interrupt Current @28 VDC (Amps): 3,000
• Ingress Protection Rating: IP66

Focal Features:

ON/OFF High Visibility Controls

Sealed against dust and moisture penetration. The high-temperature rating for all installation locations.

Reinforced Mounting

Ensures long-term structural reliability with reinforced mounting tabs built to withstand the stress of vibration.

Stainless Steel Hardware / Serrated Flange Nuts

Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA

Made in the USA of high-quality components.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Egis Mobile Electric 40A Surface Mount 87 Series Circuit Breaker is a reliable and versatile solution designed to safeguard electrical systems against short-circuits and over-current conditions. Its robust construction ensures protection against dust and water ingress, making it suitable for demanding environments. With a high voltage rating of up to 48 VDC, this circuit breaker supports a wide range of applications from 12V and 24V systems to more advanced 36V and 48VDC setups. Its sealed IP66 rating guarantees long-term durability, preventing dust and moisture from compromising the electrical integrity of your system. The breaker combines automatic circuit protection with manual on/off switching, allowing for convenient circuit isolation and maintenance without sacrificing reliability. Its high electrical and manual switching endurance—capable of enduring 2,000 cycles at full current—ensures longevity even in frequent operation scenarios. The breaker’s high interrupt current capabilities of 5,000 amps at 14 VDC and 3,000 amps at 28 VDC provide robust protection for large parallel battery banks with significant power availability. Built with reinforced mounting tabs, stainless steel hardware, and serrated flange nuts, the Egis 40A circuit breaker is engineered for long-term stability and resistance to vibration and corrosion. Proudly manufactured in the USA, it is designed for easy installation in various settings, including near battery systems, with high-visibility ON/OFF controls for user convenience. The product comes with a four-year warranty, underscoring Egis Mobile Electric’s confidence in its durability and performance. Whether used in automotive, marine, or renewable energy systems, this circuit breaker offers a dependable solution for circuit protection and load management in harsh environments.

Features:

• IP66 sealed against dust and water intrusion ensures reliable protection throughout the system's lifespan

• Supports high voltage (48 VDC) applications, ideal for 12V, 24V, 36V, and 48VDC systems

• High electrical and manual switching endurance allows for 2,000 operational cycles at full current

• High interrupt current capacity of 5,000 amps at 14 VDC and 3,000 amps at 28 VDC provides safety for large battery banks

• Reinforced mounting tabs and stainless steel hardware ensure long-term structural integrity and resistance to vibration and corrosion

• High-visibility ON/OFF controls facilitate easy circuit management

• Made in the USA with high-quality components for durability and reliability

• Designed for demanding applications requiring sealed protection against environmental factors
