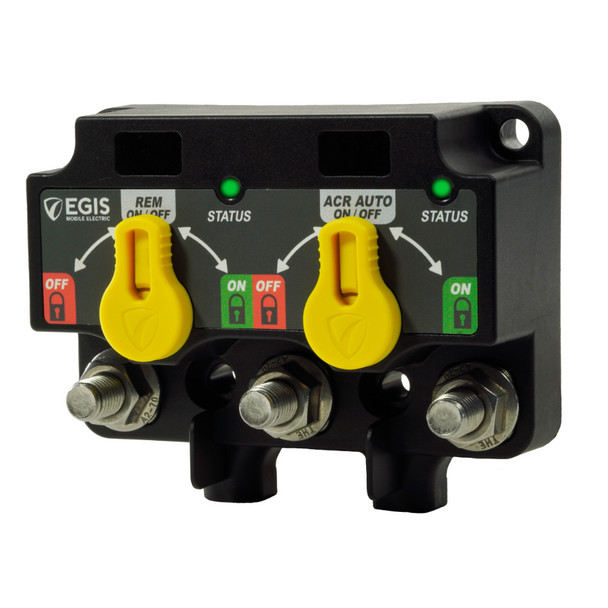

Dual XD Flex 2 - Relay - ACR with Knobs
Features:
- Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
- Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
- Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
- 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
- Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays.
- 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality.
Applications:
- Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into..
- Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.
- Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables..
- Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
The Egis Mobile Electric Dual XD Flex 2 Relay with ACR and Knobs offers a robust and versatile solution for high-current switching applications. Designed with a sealed construction rated at IP67/IP6K9K, this relay system can be mounted in harsh environments without concern for dust or water ingress. Its high-temperature electronics and stainless steel cable lug studs ensure durability and reliable connections in demanding conditions. The large mounting holes accommodate 1/4-20 or M6 hardware, simplifying installation in various vehicle or equipment setups.
Featuring intuitive manual control, operators can easily override automatic functions and clearly see whether the relay is in a locked-on or locked-off state. This feature provides enhanced operational awareness, reducing setup errors and improving system safety. The relay's simple dip switch programmability allows customization for specific OEM or installer needs, offering flexibility without complex tools. Its advanced bi-stable solenoid design and multiple solenoid assemblies significantly reduce mounting space by 35-75% and overall weight, streamlining integration into compact systems.
The Egis Dual XD Flex 2 Relay is plug-and-play compatible with legacy products, including single, dual, and triple relay configurations with DTM/ATM connectors, ensuring seamless integration into existing setups. Its low off-state current—up to 95% less than comparable products—contributes to reduced power consumption and system efficiency. This relay replaces multiple high-current relays with a single compact module, eliminating external link cables and connection failures while providing clear manual control operation and status indication.
Designed for diverse applications, the relay system simplifies complex battery management functions such as multi-battery switching and charge sharing. It can effectively replace multiple relays in automatic charging systems for 2-3 battery setups, improving energy efficiency and reducing space. The system is expandable with link and cross-link busbars, supporting configurations with up to three batteries and facilitating easy upgrades or modifications. Overall, the Egis Dual XD Flex 2 Relay with ACR and Knobs delivers a reliable, space-saving, and highly configurable switching solution ideal for automotive, marine, or industrial applications.
Features:
- Bullet-proof construction with IP67/IP6K9K sealing, high-temperature electronics, and stainless steel cable lug studs
- Intuitive manual control with clear state indication for manual override and lock status
- Simple dip switch programmability for flexible relay configuration
- Compact bi-stable solenoid design reduces mounting space and weight significantly
- Plug-and-play compatibility with legacy relay systems using DTM/ATM connectors
- High efficiency with 90-95% less off-state current compared to competitors
- Replaces multiple relays with a single, space-saving module for high-current switching
- Designed for multi-battery switching and charge management applications
- Expandable with busbars for multi-battery systems, supporting up to three batteries
