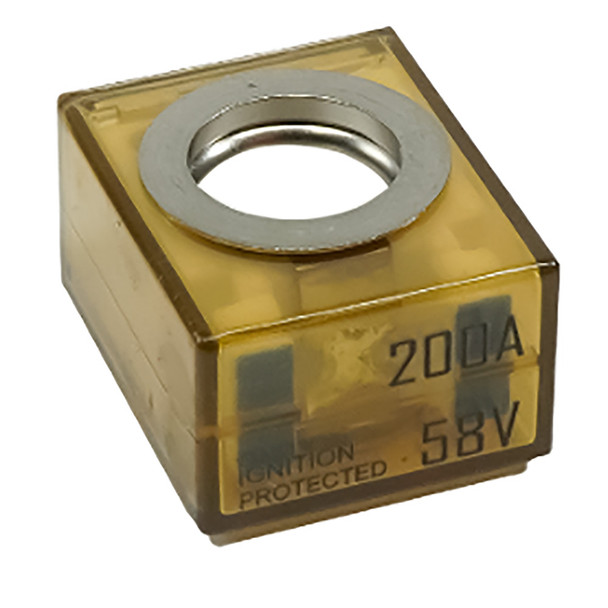

Egis Mobile Electric MRBF Terminal Fuse - 200 Amp for Marine and Vehicle Electrical Systems

MRBF Terminal Fuse - 200 Amp

• Transparent easy visual of fuse status
• Ignition-protected SAE/J1171-ISO8846
• High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
• Color-coded for easy ID of amperage rating

Features

• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
• Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
• Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 58 Vdc Rating: easily supports 12 to 48V nominal applications.
• High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 200
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48Vdc (Amps): 5,000
• Interrupt Rating @ 58Vdc (Amps): 2,000
• Ingress Protection: IP66

The Egis Mobile Electric MRBF Terminal Fuse with a 200 Amp rating offers reliable circuit protection for demanding marine and vehicle electrical applications. Designed with a transparent body, this fuse provides an easy visual indication of its status, allowing for quick inspections without removing the fuse. It features ignition protection compliant with SAE/J1171-ISO8846 standards, making it safe for installation in enclosed compartments with potentially explosive gases. Its high interrupt rating ensures it can safely handle large paralleled battery banks, providing over-current protection that prevents wire insulation damage and system failures. The fuse is color-coded for quick amperage identification, simplifying maintenance and troubleshooting in complex electrical systems. Built to withstand harsh environments, it boasts shock and vibration resistance, IP66 dust and water intrusion protection, and a sealed design that ensures long-term reliability. Supporting nominal voltages from 12V to 48V DC, it is suitable for a broad range of applications. The fuse's high interrupt current ratings—10,000 amps at 14V DC, 5,000 amps at 48V DC, and 2,000 amps at 58V DC—make it ideal for protecting large battery banks and heavy-duty circuits. With a four-year warranty, the Egis MRBF fuse stands as a durable and dependable solution for preventing electrical faults and ensuring system safety. Whether used in marine, automotive, or industrial environments, this fuse combines safety, visibility, and resilience to meet the demands of critical electrical systems.

Features:

• Transparent design for easy visual inspection of fuse status

• Ignition protected per SAE/J1171-ISO8846 standards for safe installation in explosive atmospheres

• High interrupt rating effectively protects circuits with large battery banks

• Color-coded for quick amperage identification to simplify maintenance

• Sealed against dust and water intrusion for reliable long-term operation

• Shock and vibration resistant, suitable for harsh environments

• Supports nominal voltages from 12V to 48V DC for versatile applications

• High interrupt current ratings for comprehensive circuit protection

• Durable design with a 4-year warranty ensuring product longevity
