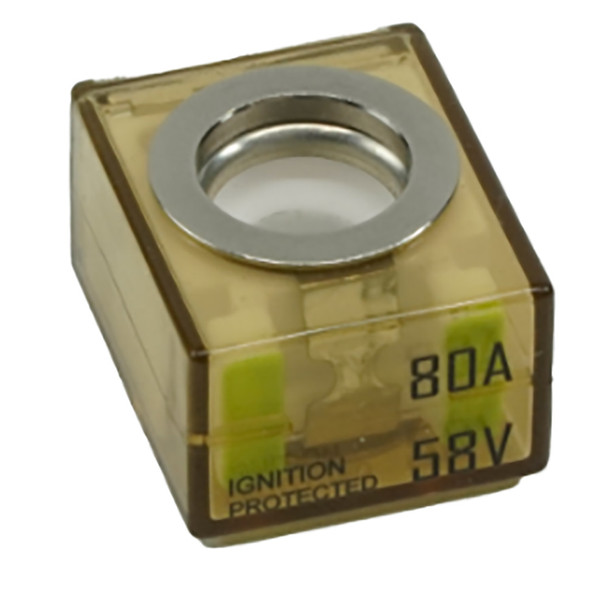

Egis MRBF Terminal Fuse - 80 Amp for Marine and Vehicle Electrical Systems

MRBF Terminal Fuse - 80 Amp

• Transparent easy visual of fuse status
• Ignition-protected SAE/J1171-ISO8846
• High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
• Color-coded for easy ID of amperage rating

Features:

• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
• Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
• Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 58 Vdc Rating: easily supports 12 to 48V nominal applications.
• High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 80
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48Vdc (Amps): 5,000
• Interrupt Rating @ 58Vdc (Amps): 2,000
• Ingress Protection: IP66

The Egis Mobile Electric MRBF Terminal Fuse provides reliable circuit protection for marine and automotive applications with an 80 amp rating. Designed with a transparent housing, it allows for quick visual inspection of the fuse status, ensuring you can easily verify whether the fuse is still active without removing it from the circuit. This fuse is ignition-protected, complying with SAE/J1171-ISO8846 standards, making it safe for installation in enclosed compartments with potentially explosive gases. Its high interrupt rating meets ABYC requirements for direct current main circuit protection on large battery banks, safeguarding your electrical system from short circuits and over-current loads that can cause wire insulation damage and system failure. The color-coded design simplifies amperage identification, reducing installation errors and maintenance time.

Features:

• Protects electrical circuits from short circuits and over-current loads, preventing wire insulation overheating and damage.

• High interrupt current safely protects circuits connected to large paralleled battery banks with significant available power.

• Ignition protected design ensures safe installation in closed compartments with potentially explosive gases, suitable for marine and vehicle environments.

• Sealed against dust and water intrusion (IP66) to maintain reliable circuit protection in harsh conditions.

• Supports 12 to 48V nominal applications with a maximum voltage rating of 58 Vdc.

• High interrupt rating of 10,000 amps at 14 Vdc, 5,000 amps at 48 Vdc, and 2,000 amps at 58 Vdc, providing robust circuit protection.

• Durable construction with shock and vibration resistance, ideal for demanding marine and automotive electrical systems.

• Backed by a 4-year warranty, affirming the product's quality and reliability.
