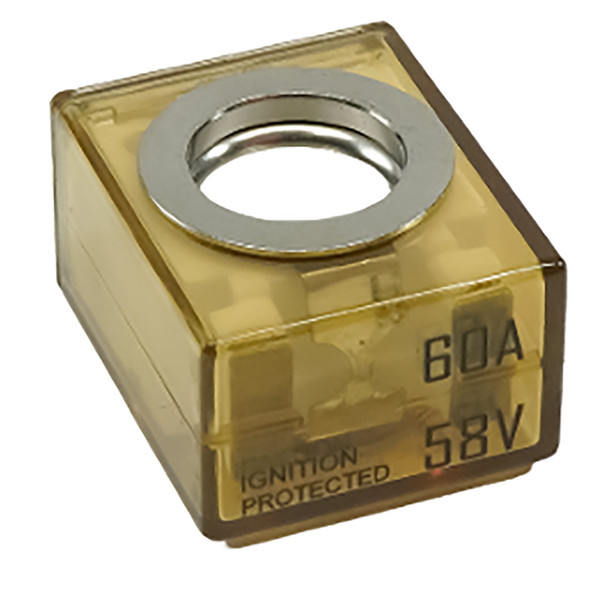

Egis Mobile Electric MRBF Terminal Fuse - 60 Amp for Marine and Vehicle Electrical Systems

MRBF Terminal Fuse - 60 Amp

• Transparent easy visual of fuse status
• Ignition-protected SAE/J1171-ISO8846
• High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
• Color-coded for easy ID of amperage rating

Features:

• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
• Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
• Sealed Against Dust Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 58 Vdc Rating: easily supports 12 to 48V nominal applications.
• High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 60
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48Vdc (Amps): 5,000
• Interrupt Rating @ 58Vdc (Amps): 2,000
• Ingress Protection: IP66

The Egis Mobile Electric MRBF Terminal Fuse with a 60 Amp rating offers reliable circuit protection for marine, automotive, and other vehicle electrical systems. Designed with a transparent body, this fuse allows for easy visual inspection of its status, ensuring quick identification of blown fuses without removal. It is ignition-protected according to SAE/J1171-ISO8846 standards, making it safe for installation in enclosed compartments containing potentially explosive gases. The fuse's high interrupt rating effectively safeguards large battery banks and parallel circuits from short circuits and over-current events, preventing damage to wiring and components. Its rugged construction is resistant to shock and vibration, ensuring durability in harsh environments such as marine or off-road vehicle applications. Sealed against dust and water intrusion with an IP66 rating, the fuse maintains reliable operation even in demanding conditions, providing peace of mind during extended use. Supporting voltages up to 58 VDC, it is suitable for systems operating between 12 and 48 volts nominal. The fuse's color-coded design facilitates quick amperage identification, streamlining maintenance and troubleshooting procedures. Backed by a 4-year warranty, the Egis MRBF Terminal Fuse ensures long-term performance and dependable protection for your electrical system, minimizing downtime and reducing repair costs.

Features:

• Provides circuit protection from short circuits and over-current loads, preventing wire insulation overheating and damage.

• High interrupt current ratings ensure safe protection for large battery banks with significant available power.

• Ignition protected design allows safe installation in closed compartments with potentially explosive gases, conforming to SAE/J1171-ISO8846 standards.

• Harsh environment construction with shock and vibration resistance ideal for marine and vehicle applications.

• Sealed against dust and water intrusion (IP66 rated) for reliable operation in tough conditions.

• Supports voltages up to 58 VDC, suitable for 12 to 48V nominal systems.

• Durable design with a transparent body for easy fuse status inspection.

• Color-coded for quick amperage identification, simplifying maintenance.

• Backed by a 4-year warranty, ensuring long-term reliability and performance.
