Description

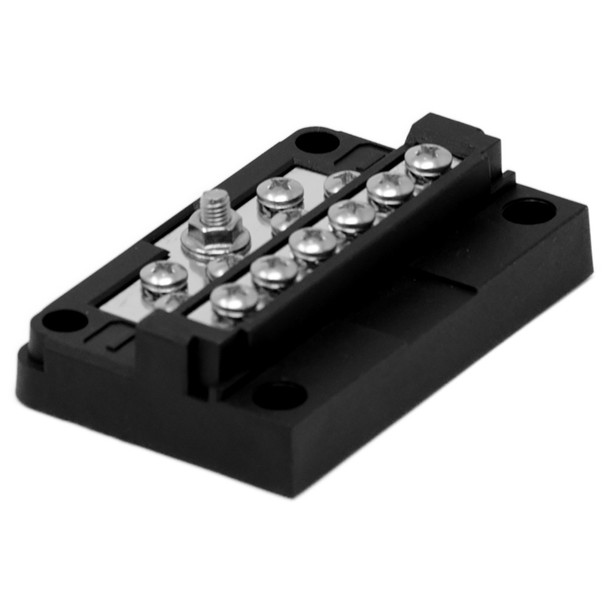

RT Screw Terminal 12 Circuit Dual Lever Bus Bar
This Egis bus bar seamlessly integrates with RT fuse blocks, can be used as a standalone ground bus, or can be assembled with an existing RT Series fuse block line. Also, this multi-level low-amp has terminal screws for improved mounting.
Applications:
- The 12-circuit block ensures ground connection reliability with this compact and well-constructed ground bus block.
- RT series connection compatibility enables a smaller installation footprint and convenient negative terminal access when installed with a fuse block application.
Features:
- Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
- Seamlessly integrates with RT fuse blocks - use as a standalone ground bus or assembled with existing RT series fuse block lines
Specifications:
- Maximum Current (Entire Block) Amps: 100
- Maximum Current (Per Circuit) Amps: 30
- Max Output Wire Size: #10 AWG
- Voltage Range VDC: 0-36
- Number of Fuse Positions: 12
- Output Terminal Connection Ring Terminal Size: M4 / (#8)
Focal Features:
Robust Materials For Harsh Environments
All attachment hardware is constructed of stainless steel with self-locking mechanisms for long-lasting installations. A plated copper alloy bus bar conductor withstands corrosion and maximizes conductivity. Engineering-grade composite insulators support high-temperature application exposure, such as in engine compartments.
Seamlessly Integrates With RT Fuse Blocks
It can be installed individually on its own or assembled to the end of a 6, 12, or 18-position RT Series fuse block for a more compact overall footprint.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Egis Mobile Electric RT Screw Terminal 12 Circuit Dual Lever Bus Bar is a versatile and durable component designed for automotive and off-road applications. Crafted from high-temperature materials and stainless steel hardware, this bus bar provides a robust solution for grounding needs in harsh environments. Its bullet-proof construction ensures long-lasting performance, making it suitable for installation in engine compartments or other demanding areas. The copper alloy bus bar conductor offers excellent conductivity while resisting corrosion, ensuring reliable electrical connections over time. Support for high-temperature exposure is reinforced by engineering-grade composite insulators, which maintain insulation integrity under extreme conditions.
This bus bar seamlessly integrates with RT fuse blocks, either as a standalone ground bus or as part of a larger fuse block assembly. Its compatibility with RT series fuse blocks allows for a compact installation footprint, saving space within vehicle electrical systems. The 12-circuit design provides reliable ground connections with each circuit rated for up to 30 amps, supporting a maximum overall current of 100 amps. The output terminals accommodate #10 AWG wires, and the M4 / #8 terminal ring connections facilitate secure mounting and wiring. The dual lever design with terminal screws enhances ease of installation and maintenance, allowing for quick and secure connections.
Whether used independently or combined with existing fuse lines, this bus bar offers a dependable solution for managing multiple ground circuits efficiently. Its construction and features make it suitable for various vehicle types, including trucks and off-road equipment, where durability and performance are critical. The Egis RT bus bar is engineered to meet the demands of high-temperature and vibration-prone environments, ensuring electrical safety and reliability in your vehicle’s electrical system.
Features:
- Robust construction with high-temperature materials and stainless steel hardware for durability in harsh environments
- Seamless integration with RT fuse blocks for flexible installation options
- Supports up to 12 circuits with a maximum of 30 amps per circuit and 100 amps overall
- Terminals accommodate #10 AWG wires with M4 / #8 ring terminal connections for secure mounting
- Designed with engineering-grade composite insulators for high-temperature resistance
