Egis Mobile Electric XD Series Dual Flex 2 ACR-Mech Only with Knobs - Flying Wires

XD Series Dual Flex 2 (ACR-Mech Only) with Knobs - Flying Wires

Features

• Replaces Two Individual High Amp Relays with One Compact Module reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into..
• Designed to Replicate Common Multi-Battery Switching and Charge Management Functions: Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented.
• Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.
• Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories.
• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 Cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

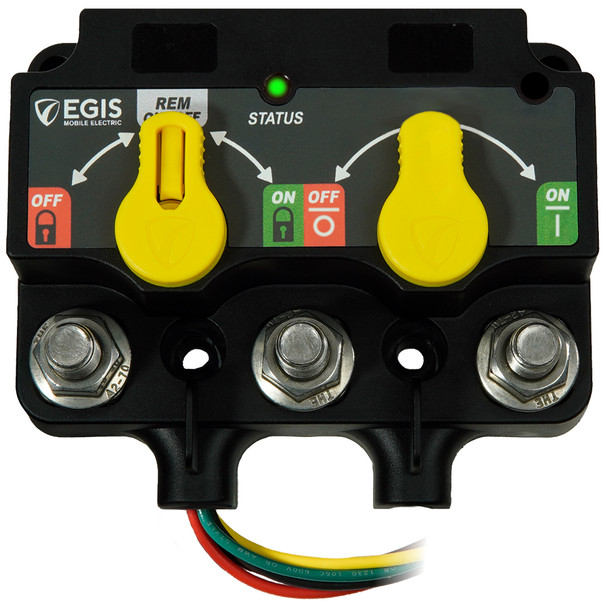

LED Status Display

Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED

3-Position Manual Override

Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.

Programmable

Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.

Integrated Vent

High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

The Egis Mobile Electric XD Series Dual Flex 2 (Part Number 8720-1390) is a versatile and compact relay system designed for advanced battery management in demanding environments. This model replaces two high-current relays with a single, space-saving module, significantly reducing installation footprint and eliminating external link cables that are prone to vibration and disconnection. Its clear manual controls and status indicators provide intuitive operation, allowing users to easily monitor and override relay functions when necessary. Built with rugged construction, the device is sealed to IP67/IP6K9K standards, making it suitable for harsh conditions and high-temperature applications. Stainless steel cable lug studs and a protective cover ensure durability and safety during installation and operation. The Egis XD Dual Flex 2 is engineered for flexibility, supporting multi-battery load switching and charge management functions, including common dual battery load switching and automatic charge relay sharing. Its expandability with link and cross-link busbars allows seamless integration into systems with two or three batteries, simplifying complex wiring layouts. The device's advanced bi-stable solenoid design reduces mounting space by 35-75% and decreases off-state current by up to 95%, improving efficiency and reducing power consumption. The intuitive manual override feature enables locking relays in on or off states, providing additional control during system servicing or fault conditions. Programmable via simple dip switches, this relay system offers significant customization options to meet specific application requirements. Additional features include an easy-to-read LED status display, weatherproof circuit labels, stainless hardware for corrosion resistance, and an integrated Gortex vent that prevents moisture ingress, enhancing reliability in extreme environments. The Egis XD Series Dual Flex 2 is compatible with legacy systems, offering plug-and-play integration with existing relay solutions, making it ideal for OEMs and installers seeking a high-performance, space-efficient battery management relay. With a continuous current capacity of 500 amps and a maximum cranking current of 1500 amps, it is suitable for heavy-duty automotive, marine, and industrial applications, ensuring reliable operation across a wide voltage range from 8 to 36 VDC.

Features:

• Replaces two high-current relays with a single compact module, saving space and simplifying wiring.

• Designed for multi-battery load switching and charge sharing, supporting dual and triple battery systems.

• Single three-relay ACR reduces off-state current draw and minimizes interconnection cables.

• Expandable with busbar link and cross-link accessories for system scalability.

• Sealed to IP67/IP6K9K standards for durability in harsh environments, with stainless steel cable studs.

• Intuitive manual override with lockable positions for safe and controlled operation.

• Easy programming via dip switches, allowing flexible relay configuration for various applications.

• Reduces mounting space by up to 75% and system weight with advanced bi-stable solenoid design.

• Plug-and-play compatibility with legacy relay systems, ensuring seamless integration.

• Significantly lower off-state current compared to traditional relay solutions, enhancing system efficiency.

• Front-facing LED status indicator and remote LED for real-time device monitoring.

• Weatherproof circuit labels included for easy identification and troubleshooting.

• Protective cover guards terminal studs and edges against accidental shorts.

• Corrosion-resistant hardware with stainless steel studs and self-locking nuts.

• Integrated Gortex vent prevents moisture entry, extending device lifespan in demanding environments.
