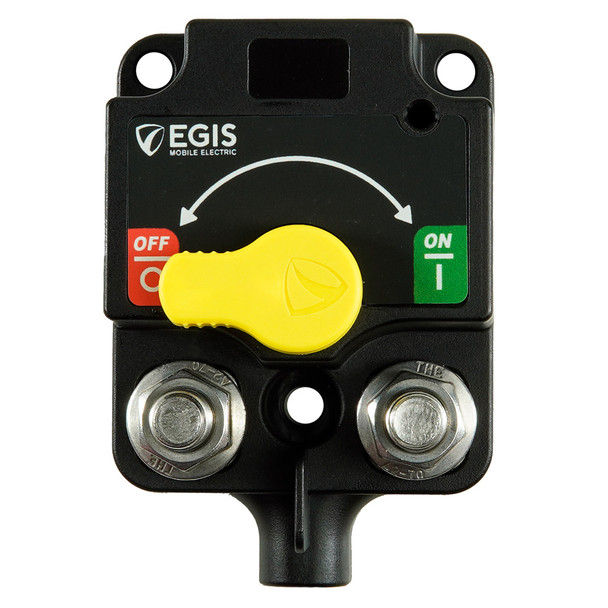

Egis Mobile Electric XD Series Single 500 Amp Heavy Duty Battery Switch and Mechanical Contactor

XD Series Single 500 Amp Heavy Duty Battery Switch/Mechanical Contactor

Features:

• Silver Alloy Contact Points support high ampere/full voltage switching capability versus legacy rotary style switches.
• Expandable: Integrate the 8700 XD Battery Disconnect easily with XD Series FLEX/ACR/LVD relays via using optional 8790 Link and 8791 Cross Link Busbars for easy integration with other Single, Dual, or Triple Circuit XD relays.
• Terminal Stud Protection: Included protective cover with convenient label recesses ensures no accidental shorts occur and allows for easy identification of circuits long term.
• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control: Bright yellow knob and intuitively easy-to-read on/off label simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state.
• Ignition Protected: Safe for installation in gasoline-powered boats and other combustible installation environments.
• Sealed IP67 Construction keeps moisture out, and the integrated Gore-Tex pressure regulation vent increases its ability to operate reliably for long-term harsh environment operation.
• Compact Case Design allows for easy surface mount or rear panel installs, and the rectangular shape (narrower than competing products) makes finding a mounting location easy.

Specifications:

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Terminal Stud Size (mm): M10
• Voltage Range (VDC): 8-36
• Ingress Protection: IP67/IP6K 9K
• Contact Materials: Silver Alloy

Focal Features:

High Visibility Knob

Force each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self locking flanged nuts.

Smaller Footprint

XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.

Integrated Vent

High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

The Egis Mobile Electric XD Series Single 500 Amp Heavy Duty Battery Switch and Mechanical Contactor is designed for reliable high-current switching in demanding environments. Featuring silver alloy contact points, this switch supports full voltage and high ampere switching, making it suitable for heavy-duty automotive, marine, and industrial applications. Its robust construction ensures durability with IP67/IP6K9K sealing, allowing it to withstand moisture, dust, and harsh conditions while maintaining optimal performance. The sealed design, combined with a Gore-Tex pressure regulation vent, ensures long-term reliability in challenging environments by preventing moisture ingress and managing internal pressure effectively. Its compact rectangular case allows easy surface mounting or rear panel installation, saving valuable space in confined areas. The device includes a bright yellow manual control knob with clear on/off labeling, providing straightforward operation and manual override capability, with the option to lock the relay in either position for added safety and control. The terminal studs are protected with included covers, reducing the risk of accidental shorts and facilitating long-term circuit management. The stainless steel studs and self-locking flanged nuts resist corrosion, ensuring stable connections over time. The switch supports integration with EG Series FLEX, ACR, and LVD relays through optional link components, enabling flexible circuit configurations with single, dual, or triple circuits. Additionally, the product includes a 40 circuit label sheet for easy circuit identification and organization. Designed with a smaller footprint than comparable products, it provides high current capacity in a space-efficient package, ideal for installations with limited space. The high-quality design and materials, combined with features such as an integrated vent and protective covers, make the Egis XD Series Battery Switch a reliable choice for demanding applications where safety, durability, and ease of use are critical.

Features:

• Silver Alloy Contact Points support high ampere/full voltage switching capability versus legacy rotary style switches

• Expandable: Integrate with XD Series FLEX/ACR/LVD relays via optional link components for versatile circuit configurations

• Terminal Stud Protection: Includes protective cover with label recesses to prevent shorts and facilitate circuit identification

• Bullet-proof Construction: Sealed to IP67/IP6K9K, with high-temperature electronics and stainless steel cable lug studs for durability

• Intuitive Manual Control: Bright yellow knob with clear on/off labels for easy operation and manual override

• Ignition Protected: Suitable for installation in gasoline-powered boats and combustible environments

• Sealed IP67 Design: Keeps moisture out, with Gore-Tex vent to regulate internal pressure for long-term reliable operation

• Compact Case Design: Allows for easy surface or rear panel mounting, with a space-saving rectangular shape
