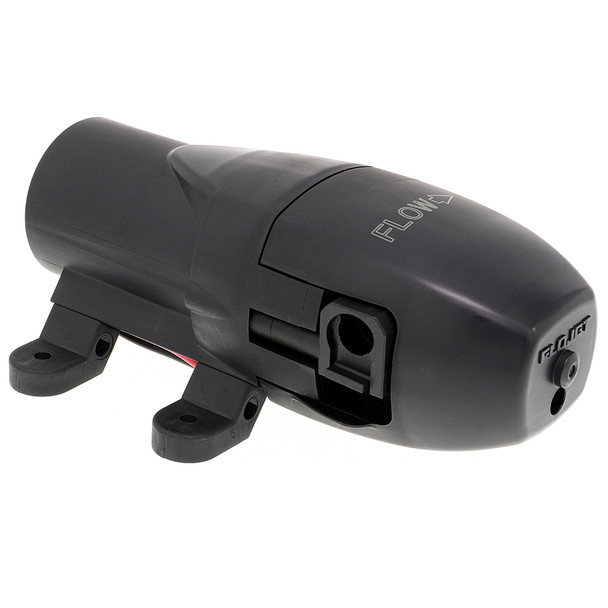

Jabsco Par-Max 1 Water Pressure Pump - 12V, 1 GPM, 35 PSI

Par-Max 1 Water Pressure Pump - 12V - 1 GPM - 35 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

• Co-molded diaphragm technology for long life and durability


• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures


• Efficient and quiet operation


• Integrated, sealed pressure switch for on-demand operation


• Self-priming allows for installation versatility


• Can run dry without damage


• Quick connect ports for ease of installation, servicing, and maintenance


• Vibration dampening mounting feet


• Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

• Motor design: Brushed, permanent magnet TENV


• Pumphead upper housing material: Glass fiber reinforced polypropylene


• Diaphragm: Co-molded TPV


• Check valves: EPDM


• Max inlet pressure: 30 PSI (2.1 Bar)


• Fluid temperature range: 32F 140F (0C 60C)


• Dry self-priming capability: 7ft min (2.13m/min)


• Certifications: CE, ISO8846, RCM


• Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

The Jabsco Par-Max 1 water pressure pump is designed to deliver reliable performance for marine and RV applications. Operating at 12 volts, it provides a flow rate of 1 gallon per minute and maintains a steady pressure of 35 PSI, ensuring consistent water supply for outlets and fixtures. Built with durability in mind, this pump features a co-molded diaphragm made from TPV for extended service life and resistance to wear. Its efficient and quiet operation makes it suitable for use in confined spaces where noise reduction is important. The integrated sealed pressure switch allows for on-demand activation, reducing unnecessary cycling and enhancing energy efficiency. Self-priming up to 7 feet, the pump offers installation flexibility, and its ability to run dry without damage simplifies maintenance and troubleshooting. The quick-connect ports facilitate easy installation and servicing, while vibration dampening mounting feet help reduce noise and vibration for a smoother operation. The pump's glass fiber reinforced polypropylene housing provides corrosion resistance, making it suitable for various water conditions. Certified by CE, ISO8846, and RCM standards, and rated IPX6 for ingress protection, the Jabsco Par-Max 1 is a dependable choice for demanding water systems.

Features:

• Co-molded diaphragm technology for long life and durability

• Heavy-duty motor and cast aluminum lower housing in HD models for increased pressure capability and longevity

• Efficient and quiet operation for comfortable use

• Integrated, sealed pressure switch for on-demand operation

• Self-priming capability up to 7 feet for versatile installation

• Can operate dry without damage, reducing maintenance concerns

• Quick connect ports for easy installation and servicing

• Vibration dampening mounting feet for reduced noise and vibration

• Includes an integrated bypass module to minimize cycling and ensure smooth flow
