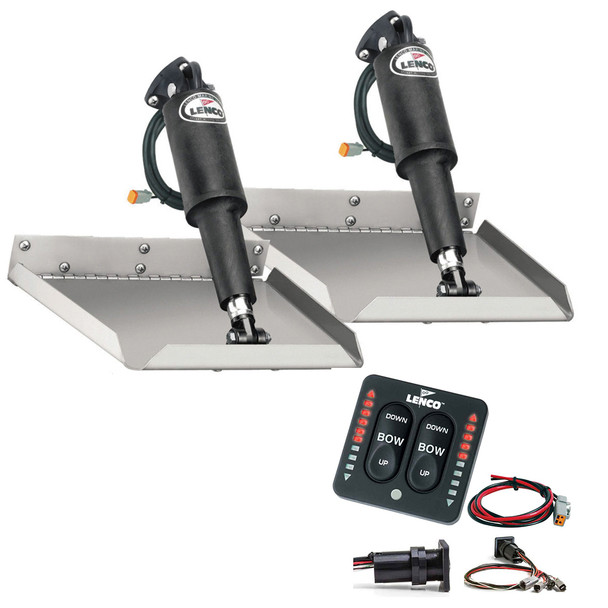

Lenco Marine 9 x 9 Edgemount Trim Tab Kit with LED Indicator Switch - 12V

Edge Mount

Mounts the actuator at the trailing edge of the plane, requiring 4 less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each Kit Includes:

Tactile LED Indicator Switch Kit

2 Actuators with 6' lead & Deutsch Plugs

2 20' Actuator Extension Wiring Harness

2 12 gauge Stainless steel trim tab planes

2 Upper Mounting Bracket with Gland Seal

2 Lower Mounting Bracket

All stainless steel mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat's performance with the Lenco Marine TT9X9EI Edgemount Trim Tab Kit, designed for precise and reliable control. This kit features an edge mount installation that requires four inches less transom height compared to standard mounts, making it ideal for tight spaces and streamlined setups. The trim tabs are constructed from 12-gauge laser-cut stainless steel planes with high-impact, corrosion-proof mounts, ensuring durability and a sleek appearance through years of use. The self-locking ballscrew design offers instant response and three times the power of typical hydraulics, providing smooth, dry, and fast adjustments for a superior ride and increased safety on all types of boats, from small skiffs to mega-yachts. The actuators are fully sealed, maintenance-free, and operate on a 50% glass fiber-filled, ultraviolet-resistant nylon case with super buff stainless steel rams, making them environmentally conscious and oil-free. The kit includes two actuators with 6-foot leads and Deutsch plugs, stainless steel mounting hardware, and extension wiring harnesses to facilitate easy installation. The tactile LED indicator switch features sealed, fade- and smudge-proof graphics, a built-in retract function to return tabs when power is off, and an ambient light sensor that adjusts LED brightness for visibility in direct sunlight. Compatible with both 12 and 24 volts, the switch also includes a self-check feature to ensure proper operation. This comprehensive package provides everything needed for precise trim control, offering a cleaner, space-saving setup with high reliability and performance. Whether upgrading a small craft or outfitting a larger vessel, the Lenco Marine Edgemount Trim Tab Kit delivers enhanced ride quality, speed, and safety with minimal maintenance and maximum durability.

Features:

• Edge mount installation requiring 4 inches less transom height

• Instant response electric actuators for precise control

• Fully sealed, maintenance-free, and sealed for life

• Self-locking ballscrew prevents drifting, even while backing down

• High-impact, corrosion-proof stainless steel trim tab planes

• Ultraviolet-resistant nylon actuator cases for environmental durability

• 316 super buff stainless steel rams for longevity

• Tactile LED indicator switch with built-in retract feature

• Sealed, fade- and smudge-proof graphics on switch

• LED indicators for real-time trim tab position

• Ambient light sensor adjusts LED brightness in sunlight

• Compatibile with 12V and 24V electrical systems

• Includes all necessary mounting hardware and wiring harnesses
